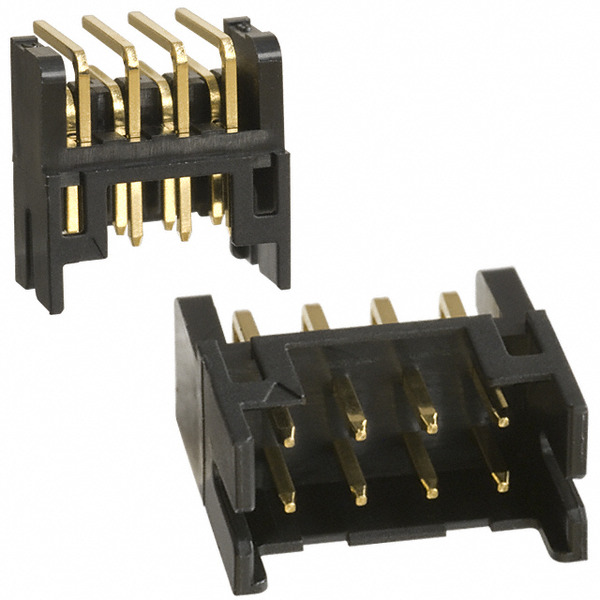

DF11-8DP-2DS(52)
Hirose
Images are for reference only.
See Product Specifications for product details.
Buy DF11-8DP-2DS(52) with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DF11-8DP-2DS(52) with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DF11-8DP-2DS(52) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 8POS 2MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 48 pcs | 144 pcs | 528 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.28 | $1.056 | $0.968 | $0.792 | $0.704 | |
Specifications
Data sheet
| Voltage Rating: | 250V |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | DF11 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | *DF11-8DP-2DS(52) DF11-8DP-2DS(52)-ND DF118DP2DS52 H2867 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 8 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon |
| Insulation Height: | 0.197" (5.00mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Detent Lock |
| Detailed Description: | Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm) |
| Current Rating: | 2A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.118" (3.00mm) |
| Contact Length - Mating: | 0.118" (3.00mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 8.00µin (0.203µm) |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply DF11-8DP-2DS(52), use the request quote form to request DF11-8DP-2DS(52) pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DF11-8DP-2DS(52).The price and lead time for DF11-8DP-2DS(52) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DF11-8DP-2DS(52).We look forward to working with you to establish long-term relations of cooperation
