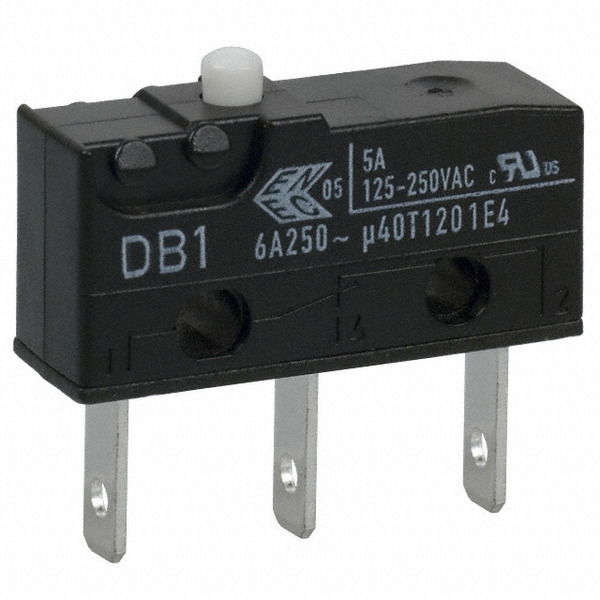

DB1CB1AA
Cherry Switches (ZF Electronics)
Images are for reference only.
See Product Specifications for product details.
Buy DB1CB1AA with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DB1CB1AA with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DB1CB1AA |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH SNAP ACTION SPDT 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.31 | $2.136 | $2.002 | $1.958 | $1.558 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.469 | $1.38 | $1.291 | $1.202 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 48V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Quick Connect - 0.110" (2.8mm) |
| Switch Function: | On-Mom |
| Series: | DB |
| Release Force: | - |
| Pretravel: | 0.040" (1.0mm) |
| Packaging: | Bulk |
| Overtravel: | 0.025" (0.6mm) |
| Other Names: | CH885 DB1C-B1AA DB1CB1AA-ND |
| Operating Temperature: | -40°C ~ 120°C |
| Operating Position: | 0.330" (8.4mm) |
| Operating Force: | 150gf |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 15,000,000 Cycles |
| Manufacturer Standard Lead Time: | 29 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP50 - Dust Protected |
| Features: | - |
| Electrical Life: | 6,000 Cycles |
| Differential Travel: | 0.004" (0.1mm) |
| Current Rating: | 5A (AC), 1A (DC) |
| Circuit: | SPDT |
| Actuator Type: | Round (Pin Plunger) |
| Email: | info@cjjhk.com |
Introduce
We can supply DB1CB1AA, use the request quote form to request DB1CB1AA pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DB1CB1AA.The price and lead time for DB1CB1AA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DB1CB1AA.We look forward to working with you to establish long-term relations of cooperation
