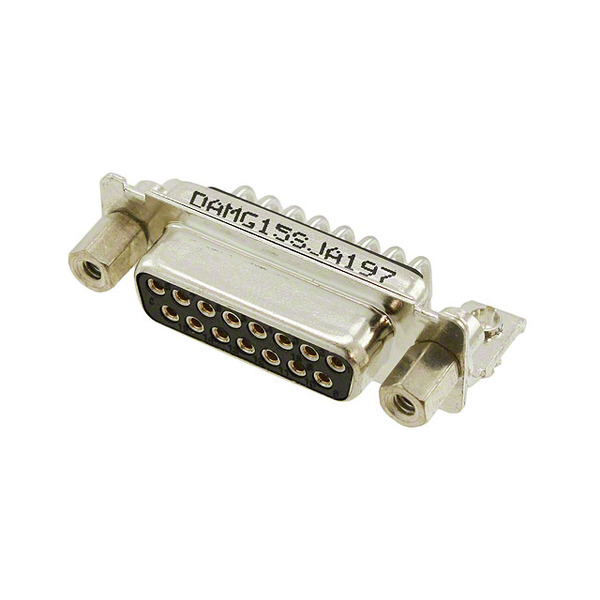

DAMG-15S-J-A197
Cannon
Images are for reference only.
See Product Specifications for product details.
Buy DAMG-15S-J-A197 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DAMG-15S-J-A197 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DAMG-15S-J-A197 |
|---|---|
| Manufacturer | Cannon |
| Description | CONN D-SUB RCPT 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $21.87 | $19.739 | $17.139 | $16.193 | $15.721 | |
Specifications
Data sheet
| Wire Gauge: | - |
|---|---|
| Voltage Rating: | - |
| Termination: | Solder |
| Shell Size, Connector Layout: | 2 (DA, A) |
| Shell Material, Finish: | Steel, Tin-Nickel Plated |
| Series: | D*M |
| Packaging: | Bulk |
| Other Names: | 053512-2008 1003-1842 535122008 DAMG-15S-J-A197-ND DAMG15SJA197 IDAMG15SJA197 IDAMG15SJA197-ND |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions: | 15 |
| Mounting Type: | Panel Mount, Through Hole, Right Angle |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Housing Material: | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Flange Feature: | Mating Side, Female Screwlock (4-40) |
| Features: | Board Lock, Mounting Brackets |
| Detailed Description: | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating: | 7.5A |
| Contact Type: | Signal |
| Contact Material: | Copper Alloy |
| Contact Form: | Machined |
| Contact Finish Thickness: | Flash |
| Contact Finish: | Gold |
| Connector Type: | Receptacle, Female Sockets |
| Connector Style: | D-Sub |
| Color: | Black |
| Backset Spacing: | 0.283" (7.20mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply DAMG-15S-J-A197, use the request quote form to request DAMG-15S-J-A197 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DAMG-15S-J-A197.The price and lead time for DAMG-15S-J-A197 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DAMG-15S-J-A197.We look forward to working with you to establish long-term relations of cooperation
