D3408-5302-AR
3M

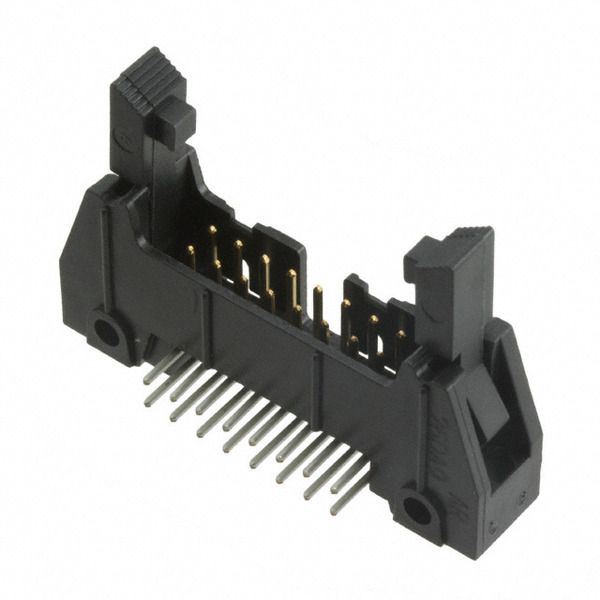

Images are for reference only.
See Product Specifications for product details.
Buy D3408-5302-AR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy D3408-5302-AR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | D3408-5302-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 16POS R/A LONG LATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 350 pcs | 700 pcs | |
|---|---|---|---|---|---|
| $2.01 | $1.823 | $1.414 | $1.302 | ||
| 1050 pcs | 5250 pcs | 10150 pcs | |||
| $1.116 | $0.99 | $0.967 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | D3000 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0-00-51119-90810-7 3M157252 5111990810 51119908107 7010396951 80-0012-0537-8 80001205378 D3408-5302-AR-ND D3408-5302AR D34085302AR |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 16 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height: | 0.340" (8.64mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot, Mounting Flange |
| Fastening Type: | Latch Lock/Eject Hooks, Long |
| Detailed Description: | Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm) |
| Current Rating: | 1.75A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.112" (2.84mm) |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Finish Thickness - Post: | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply D3408-5302-AR, use the request quote form to request D3408-5302-AR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number D3408-5302-AR.The price and lead time for D3408-5302-AR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# D3408-5302-AR.We look forward to working with you to establish long-term relations of cooperation
