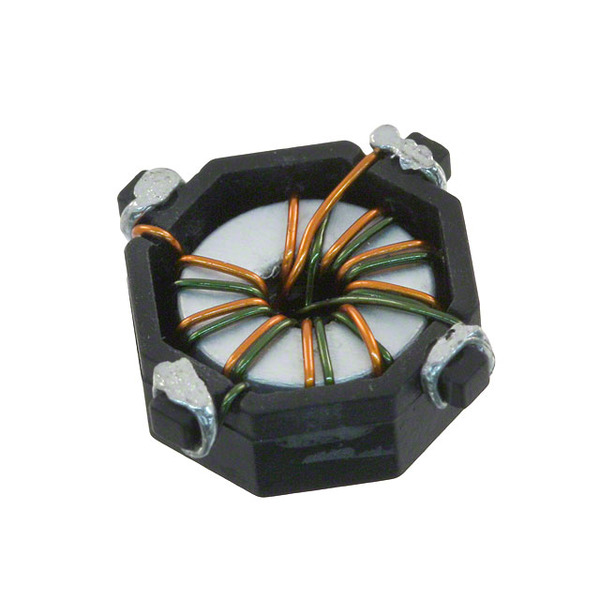

CTX5-1A-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy CTX5-1A-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CTX5-1A-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CTX5-1A-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 4.7UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Tolerance: | ±25% |
|---|---|
| Size / Dimension: | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Shielding: | Unshielded |
| Series: | OCTA-PAC® PLUS |
| Ratings: | - |
| Packaging: | Original-Reel® |
| Package / Case: | Nonstandard |
| Other Names: | 513-1811-6 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Coils: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance - Connected In Series: | 18.8µH |
| Inductance - Connected In Parallel: | 4.7µH |
| Height: | 0.165" (4.19mm) |
| Detailed Description: | Unshielded 2 Coil Inductor Array 18.8µH Inductance - Connected in Series 4.7µH Inductance - Connected in Parallel 20 mOhm Max DC Resistance (DCR) - Parallel 4.27A Nonstandard |
| DC Resistance (DCR) - Series: | 82 mOhm Max |
| DC Resistance (DCR) - Parallel: | 20 mOhm Max |
| Current Saturation - Series: | 1.88A |
| Current Saturation - Parallel: | 3.75A |
| Current Rating - Series: | 2.13A |
| Current Rating - Parallel: | 4.27A |
| Email: | info@cjjhk.com |
Introduce
We can supply CTX5-1A-R, use the request quote form to request CTX5-1A-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CTX5-1A-R.The price and lead time for CTX5-1A-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CTX5-1A-R.We look forward to working with you to establish long-term relations of cooperation
