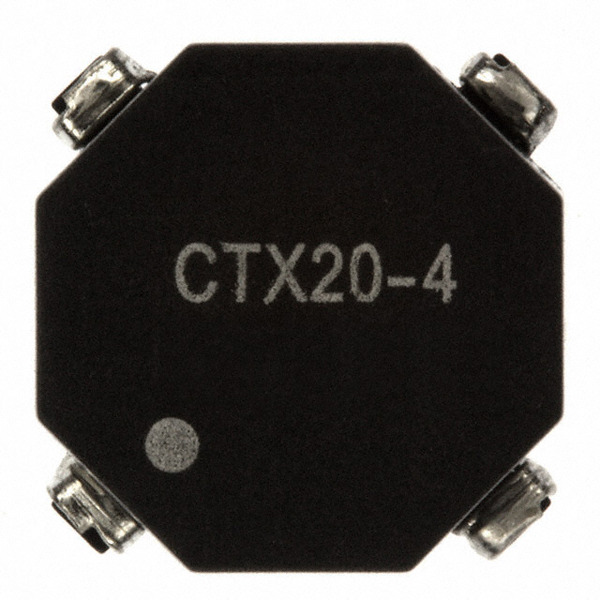

CTX20-4-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy CTX20-4-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CTX20-4-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CTX20-4-R |
|---|---|
| Manufacturer | Eaton |
| Description | Ind Power Wirewound 19.6uH/78.4uH 20% 100KHz Amorphous Metal 2.1A/1.05A T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $4.464 | $4.029 | $3.634 | $3.555 | ||
Specifications
Data sheet
| Tolerance: | ±20% |
|---|---|
| Size / Dimension: | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Shielding: | Unshielded |
| Series: | OCTA-PAC® |
| Ratings: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1007-1 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Coils: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance - Connected In Series: | 78.4µH |
| Inductance - Connected In Parallel: | 19.6µH |
| Height: | 0.250" (6.35mm) |
| Detailed Description: | Unshielded 2 Coil Inductor Array 78.4µH Inductance - Connected in Series 19.6µH Inductance - Connected in Parallel 55 mOhm Max DC Resistance (DCR) - Parallel 2.1A Nonstandard |
| DC Resistance (DCR) - Series: | 220 mOhm Max |
| DC Resistance (DCR) - Parallel: | 55 mOhm Max |
| Current Rating - Series: | 1.05A |
| Current Rating - Parallel: | 2.1A |
| Email: | info@cjjhk.com |
Introduce
We can supply CTX20-4-R, use the request quote form to request CTX20-4-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CTX20-4-R.The price and lead time for CTX20-4-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CTX20-4-R.We look forward to working with you to establish long-term relations of cooperation
