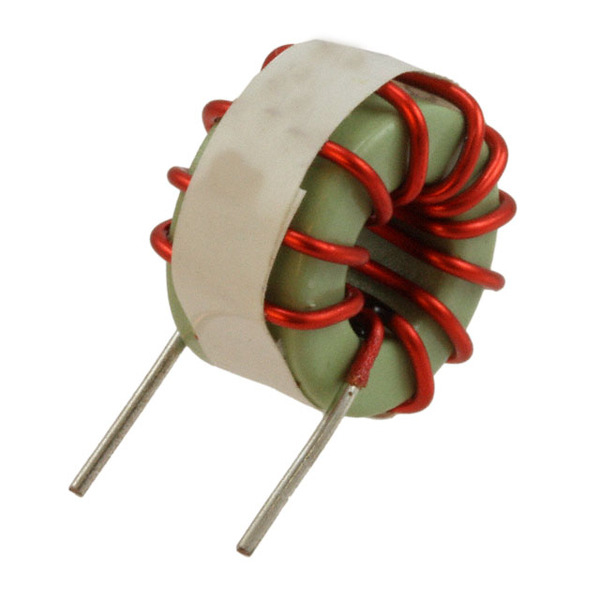

CTX10-5-52-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy CTX10-5-52-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CTX10-5-52-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CTX10-5-52-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 10UH 8.7A 10.4 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.44 | $3.154 | $2.065 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.835 | $1.721 | $1.663 | |||
Specifications
Data sheet
| Type: | Toroidal |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.874" Dia x 0.547" W (22.20mm x 13.90mm) |
| Shielding: | Unshielded |
| Series: | CTX |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Bulk |
| Package / Case: | Radial |
| Other Names: | 513-1677 CTX10-5-52-R-ND CTX10552R |
| Operating Temperature: | -40°C ~ 75°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Iron Powder |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 10µH |
| Height - Seated (Max): | - |
| Frequency - Self Resonant: | - |
| Detailed Description: | 10µH Unshielded Toroidal Inductor 8.7A 10.4 mOhm Max Radial |
| DC Resistance (DCR): | 10.4 mOhm Max |
| Current Rating: | 8.7A |
| Current - Saturation: | 11.1A |
| Email: | info@cjjhk.com |
Introduce
We can supply CTX10-5-52-R, use the request quote form to request CTX10-5-52-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CTX10-5-52-R.The price and lead time for CTX10-5-52-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CTX10-5-52-R.We look forward to working with you to establish long-term relations of cooperation
