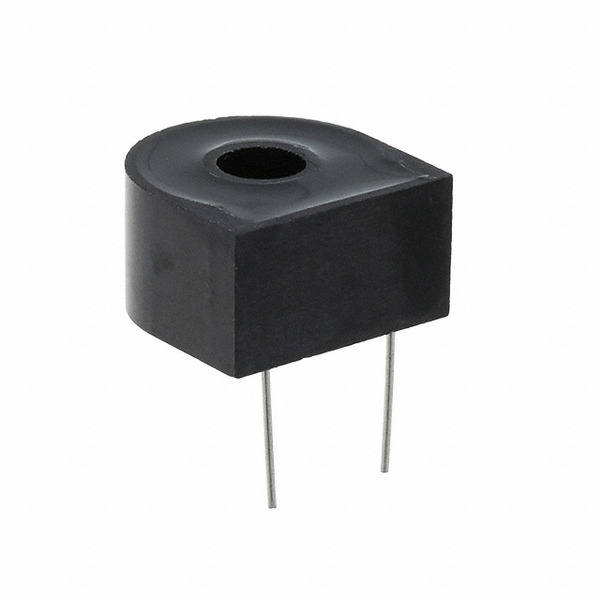

CT-05
KEMET
Images are for reference only.
See Product Specifications for product details.
Buy CT-05 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CT-05 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CT-05 |
|---|---|
| Manufacturer | KEMET |
| Description | CURR SENSE XFMR T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $8.84 | $7.75 | $6.975 | $6.20 | ||
| 50 pcs | 100 pcs | 500 pcs | 1000 pcs | ||
| $5.735 | $4.96 | $4.65 | $4.34 | ||
Specifications
Data sheet
| Type: | Non-Invasive (Solid Core) |
|---|---|
| Turns Ratio - Primary:Secondary: | 500:1 |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.689" L x 0.689" W (17.50mm x 17.50mm) |
| Series: | CT |
| Ratings: | - |
| Packaging: | Bulk |
| Other Names: | 399-12112 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 0.394" (10.00mm) |
| Frequency Range: | 50/60Hz |
| Energy Time (E.T.): | - |
| Detailed Description: | 10A 500:1 Current Sense Transformer 50/60Hz Through Hole |
| DC Resistance (DCR): | - |
| Current Ratio: | 500:1 |
| Current Rating: | 10A |
| Email: | info@cjjhk.com |
Introduce
We can supply CT-05, use the request quote form to request CT-05 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CT-05.The price and lead time for CT-05 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CT-05.We look forward to working with you to establish long-term relations of cooperation
