CST206-2T
Triad Magnetics

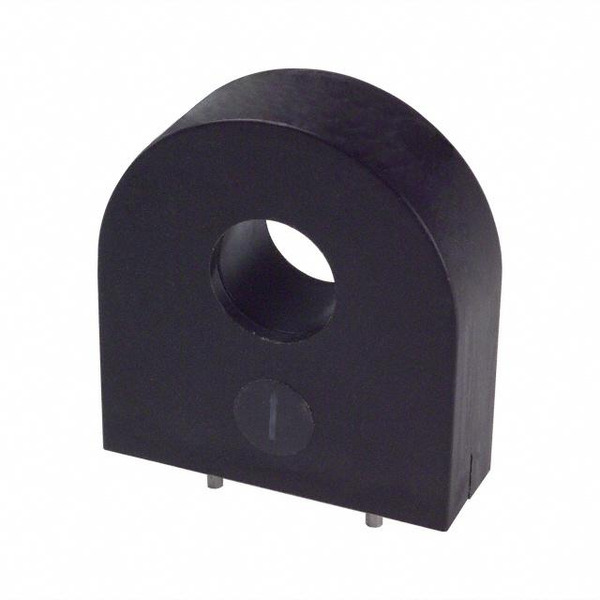

Images are for reference only.
See Product Specifications for product details.
Buy CST206-2T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CST206-2T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CST206-2T |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 80A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $7.04 | |||||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Type: | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary: | - |
| Termination Style: | PC Pin |
| Size / Dimension: | 1.075" L x 0.400" W (27.31mm x 10.16mm) |
| Series: | CST |
| Ratings: | - |
| Packaging: | Bulk |
| Other Names: | 237-1099 |
| Mounting Type: | Through Hole |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 56mH |
| Height - Seated (Max): | 1.225" (31.12mm) |
| Frequency Range: | 20kHz ~ 200kHz |
| Energy Time (E.T.): | 4000V µS |
| Detailed Description: | 80A Current Sense Transformer 20kHz ~ 200kHz 3.5 Ohm Max 56mH Through Hole |
| DC Resistance (DCR): | 3.5 Ohm Max |
| Current Ratio: | 200:1 |
| Current Rating: | 80A |
| Email: | info@cjjhk.com |
Introduce
We can supply CST206-2T, use the request quote form to request CST206-2T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CST206-2T.The price and lead time for CST206-2T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CST206-2T.We look forward to working with you to establish long-term relations of cooperation
