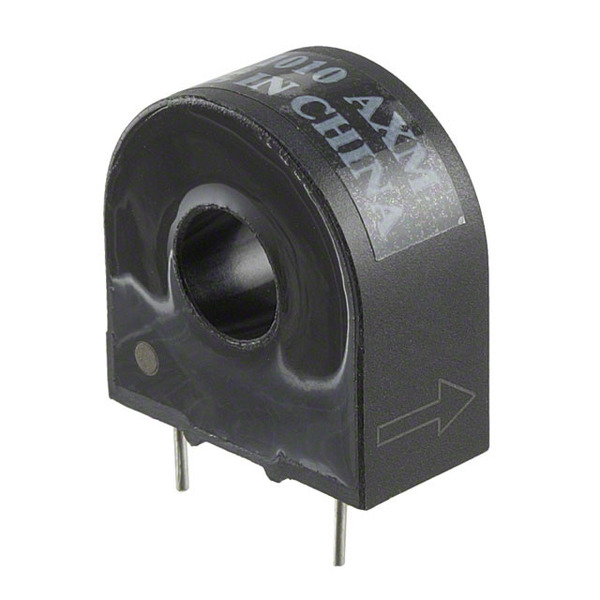

CST-1010
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy CST-1010 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CST-1010 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CST-1010 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 10A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.22 | $5.488 | $5.344 | $4.911 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.622 | $4.477 | $4.333 | $4.188 | ||
Specifications
Data sheet
| Weight: | 0.044 lb (19.96g) |
|---|---|
| Type: | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary: | - |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.925" L x 0.472" W (23.50mm x 12.00mm) |
| Series: | CST |
| Ratings: | - |
| Packaging: | Bulk |
| Other Names: | 237-1622 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 0.976" (24.80mm) |
| Frequency Range: | 50/60Hz |
| Energy Time (E.T.): | - |
| Detailed Description: | 10A Current Sense Transformer 50/60Hz 40 Ohm Through Hole |
| DC Resistance (DCR): | 40 Ohm |
| Current Ratio: | 1000:1 |
| Current Rating: | 10A |
| Email: | info@cjjhk.com |
Introduce
We can supply CST-1010, use the request quote form to request CST-1010 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CST-1010.The price and lead time for CST-1010 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CST-1010.We look forward to working with you to establish long-term relations of cooperation
