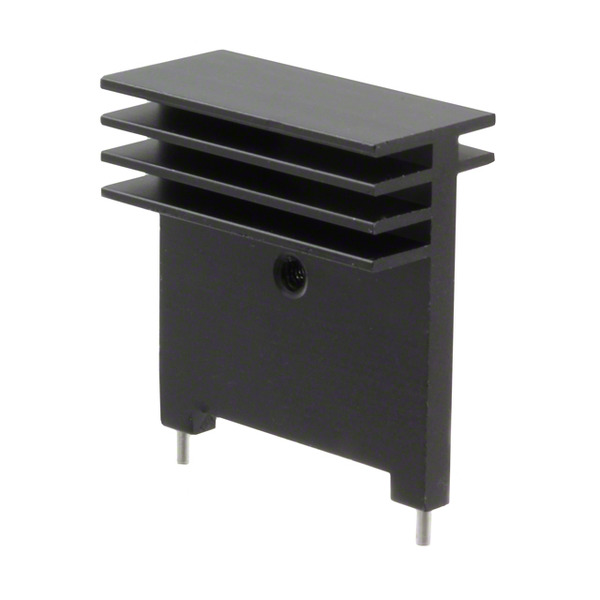

CSM222-30AE
Ohmite
Images are for reference only.
See Product Specifications for product details.
Buy CSM222-30AE with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CSM222-30AE with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CSM222-30AE |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK BLACK ANODIZED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.95 | $0.90 | $0.855 | $0.833 | $0.821 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.765 | $0.72 | $0.653 | $0.63 | ||
Specifications
Data sheet
| Width: | 0.562" (14.27mm) |
|---|---|
| Type: | Board Level, Vertical |
| Thermal Resistance @ Natural: | 11.30°C/W |
| Thermal Resistance @ Forced Air Flow: | - |
| Shape: | Rectangular, Fins |
| Series: | CSM |
| Power Dissipation @ Temperature Rise: | 5.0W @ 60°C |
| Package Cooled: | TO-220 |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Material Finish: | Black Anodized |
| Material: | Aluminum |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Length: | 1.173" (29.80mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 1.228" (31.20mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink TO-220 Aluminum 5.0W @ 60°C Board Level, Vertical |
| Attachment Method: | Solderable Feet |
| Email: | info@cjjhk.com |
Introduce
We can supply CSM222-30AE, use the request quote form to request CSM222-30AE pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSM222-30AE.The price and lead time for CSM222-30AE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSM222-30AE.We look forward to working with you to establish long-term relations of cooperation
