CSE187L-P
Triad Magnetics

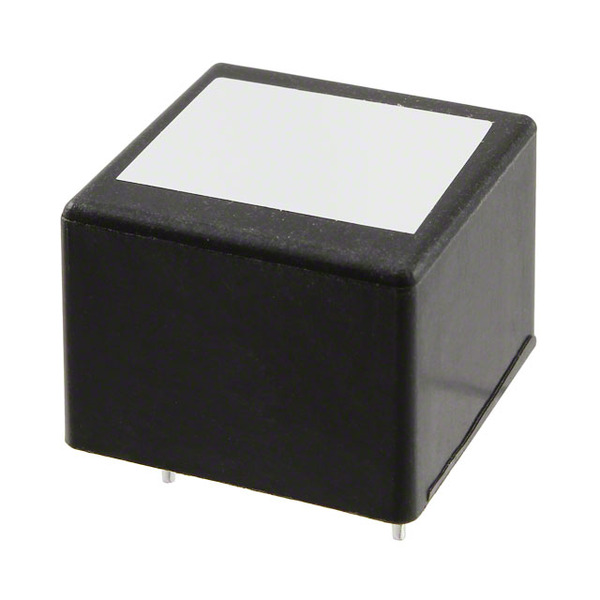

Images are for reference only.
See Product Specifications for product details.
Buy CSE187L-P with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CSE187L-P with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CSE187L-P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 1:500 30A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.01 | $4.059 | $3.282 | $3.074 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.936 | $2.85 | $2.763 | $2.677 | ||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | 1:500 |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.875" L x 0.875" W (22.23mm x 22.23mm) |
| Series: | CSE |
| Ratings: | - |
| Packaging: | Bulk |
| Other Names: | 237-1628 CSE187L-P-ND Q2465469 Q3453587 |
| Mounting Type: | Through Hole |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 0.720" (18.29mm) |
| Frequency Range: | 50Hz ~ 400Hz |
| Energy Time (E.T.): | - |
| Detailed Description: | 30A 1:500 Current Sense Transformer 50Hz ~ 400Hz 3 mOhm Primary, 21 Ohm Secondary Through Hole |
| DC Resistance (DCR): | 3 mOhm Primary, 21 Ohm Secondary |
| Current Ratio: | - |
| Current Rating: | 30A |
| Email: | info@cjjhk.com |
Introduce
We can supply CSE187L-P, use the request quote form to request CSE187L-P pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSE187L-P.The price and lead time for CSE187L-P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSE187L-P.We look forward to working with you to establish long-term relations of cooperation
