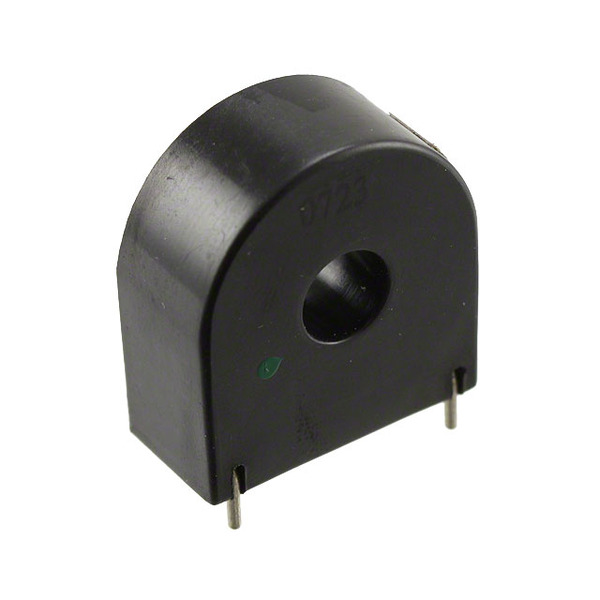

CR8348-1000
CR Magnetics, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy CR8348-1000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CR8348-1000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CR8348-1000 |
|---|---|
| Manufacturer | CR Magnetics, Inc. |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.54 | $7.308 | $6.192 | $6.09 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $5.786 | $5.725 | $5.643 | $5.583 | ||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Type: | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary: | - |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.925" L x 0.433" W (23.50mm x 11.00mm) |
| Series: | CR8300 |
| Ratings: | - |
| Packaging: | Bulk |
| Other Names: | 582-1161 CR8348-1000-ND CR83481000 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 0.984" (25.00mm) |
| Frequency Range: | 20Hz ~ 1kHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 20A Current Sense Transformer 20Hz ~ 1kHz 24 Ohm Through Hole |
| DC Resistance (DCR): | 24 Ohm |
| Current Ratio: | 1000:1 |
| Current Rating: | 20A |
| Email: | info@cjjhk.com |
Introduce
We can supply CR8348-1000, use the request quote form to request CR8348-1000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CR8348-1000.The price and lead time for CR8348-1000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CR8348-1000.We look forward to working with you to establish long-term relations of cooperation
