CPC1301GRTR
IXYS Corporation

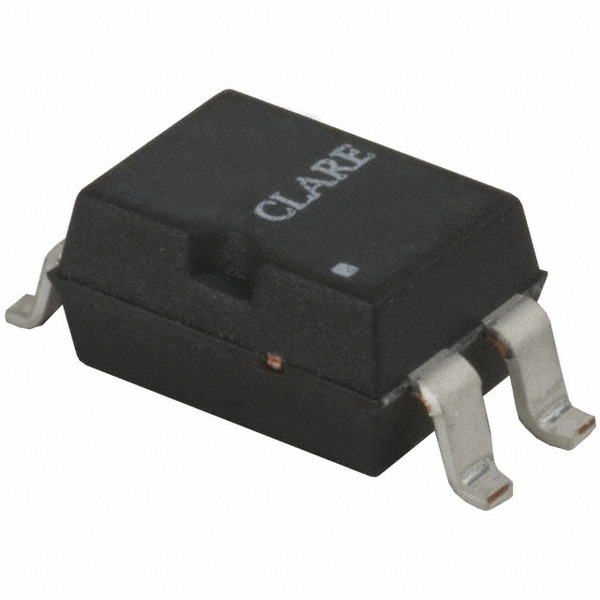

Images are for reference only.
See Product Specifications for product details.
Buy CPC1301GRTR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CPC1301GRTR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CPC1301GRTR |
|---|---|
| Manufacturer | IXYS |
| Description | CPC1301 Series Single Channel 350 V 5000 Vrms Surface Mount Optocoupler DIP-4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.025 | $0.925 | $0.834 | $0.816 | ||
Specifications
Data sheet
| Voltage - Output (Max): | 350V |
|---|---|
| Voltage - Isolation: | 5000Vrms |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Vce Saturation (Max): | 1.2V |
| Turn On / Turn Off Time (Typ): | 1µs, 80µs |
| Supplier Device Package: | 4-SMD |
| Series: | - |
| Rise / Fall Time (Typ): | 40µs, 2.6µs |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 4-SMD, Gull Wing |
| Output Type: | Darlington |
| Other Names: | CLA294CT |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Channels: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | DC |
| Detailed Description: | Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD |
| Current Transfer Ratio (Min): | 1000% @ 1mA |
| Current Transfer Ratio (Max): | 8000% @ 1mA |
| Current - Output / Channel: | - |
| Current - DC Forward (If) (Max): | 1mA |
| Email: | info@cjjhk.com |
Introduce
We can supply CPC1301GRTR, use the request quote form to request CPC1301GRTR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CPC1301GRTR.The price and lead time for CPC1301GRTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CPC1301GRTR.We look forward to working with you to establish long-term relations of cooperation
