CMT-8121
Triad Magnetics

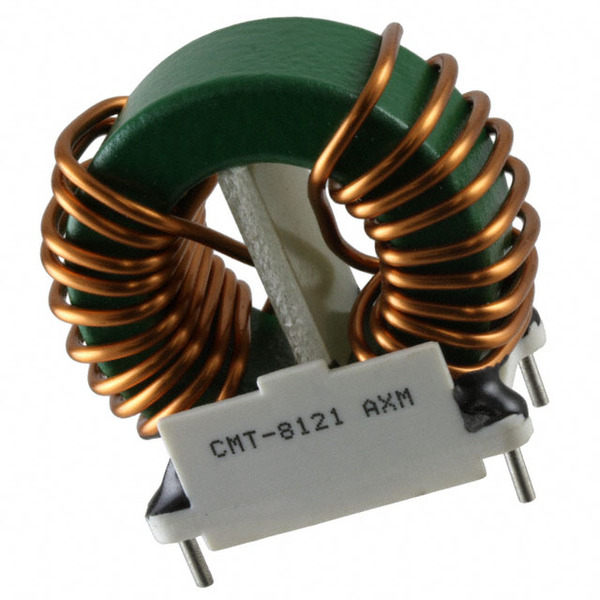

Images are for reference only.
See Product Specifications for product details.
Buy CMT-8121 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CMT-8121 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CMT-8121 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | COMMON MODE CHOKE 1MH 20A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $8.33 | $7.499 | $5.333 | $5.00 | $4.666 | |
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | 250V |
| Size / Dimension: | 1.700" L x 0.900" W (43.18mm x 22.86mm) |
| Series: | CMT |
| Ratings: | - |
| Packaging: | Bulk |
| Package / Case: | Vertical, 4 PC Pin |
| Other Names: | 237-1372 CMT8121 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Lines: | 2 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 1mH @ 1kHz |
| Height (Max): | 1.650" (41.91mm) |
| Filter Type: | Power Line |
| Features: | ESD |
| Detailed Description: | 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 20A DCR 7 mOhm |
| DC Resistance (DCR) (Max): | 7 mOhm |
| Current Rating (Max): | 20A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply CMT-8121, use the request quote form to request CMT-8121 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CMT-8121.The price and lead time for CMT-8121 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CMT-8121.We look forward to working with you to establish long-term relations of cooperation
