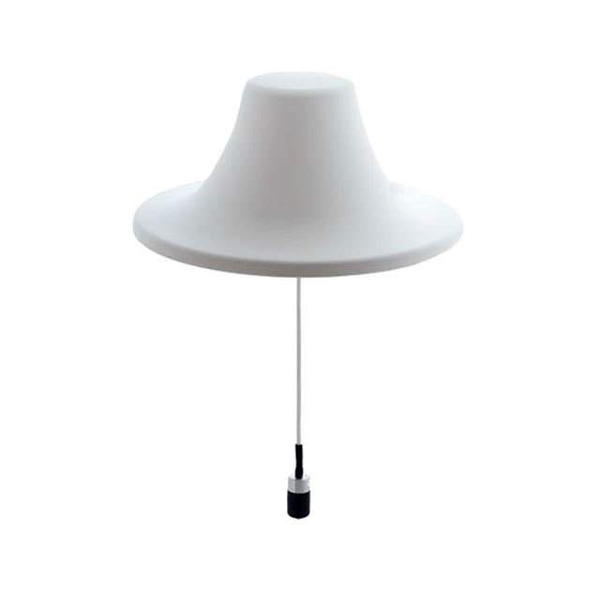

CMS38606P-30NF
Laird Technologies - Antennas
Images are for reference only.
See Product Specifications for product details.
Buy CMS38606P-30NF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CMS38606P-30NF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CMS38606P-30NF |
|---|---|
| Manufacturer | Laird Technologies - Antennas |
| Description | RF ANT 450MHZ/700MHZ DOME CABLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $80.57 | $75.687 | $72.268 | $68.362 | ||
Specifications
Data sheet
| VSWR: | 2.8, 1.7, 1.9, 1.4, 1.6, 1.9, 1.6 |
|---|---|
| Termination: | Cable (305mm) - N Female |
| Series: | - |
| Return Loss: | - |
| Power - Max: | 50W |
| Packaging: | Bulk |
| Other Names: | 994-1114 |
| Number of Bands: | 7 |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP67 |
| Height (Max): | 11.732" (298.00mm) |
| Gain: | 3.1dBi, 2.7dBi, 2.9dBi, 5.4dBi, 6.1dBi, 7dBi, 6.1dBi |
| Frequency Range: | 380MHz ~ 960MHz, 1.395GHz ~ 6GHz |
| Frequency Group: | Wide Band |
| Frequency (Center/Band): | 450MHz, 700MHz, 850MHz, 1.4GHz, 2.4GHz, 5GHz |
| Features: | - |
| Detailed Description: | 450MHz, 700MHz, 850MHz, 1.4GHz, 2.4GHz, 5GHz LTE Dome RF Antenna 380MHz ~ 960MHz, 1.395GHz ~ 6GHz 3.1dBi, 2.7dBi, 2.9dBi, 5.4dBi, 6.1dBi, 7dBi, 6.1dBi Cable (305mm) - N Female Panel Mount |
| Applications: | LTE |
| Antenna Type: | Dome |
| Email: | info@cjjhk.com |
Introduce
We can supply CMS38606P-30NF, use the request quote form to request CMS38606P-30NF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CMS38606P-30NF.The price and lead time for CMS38606P-30NF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CMS38606P-30NF.We look forward to working with you to establish long-term relations of cooperation
