CMS2-7-R
Bussmann (Eaton)

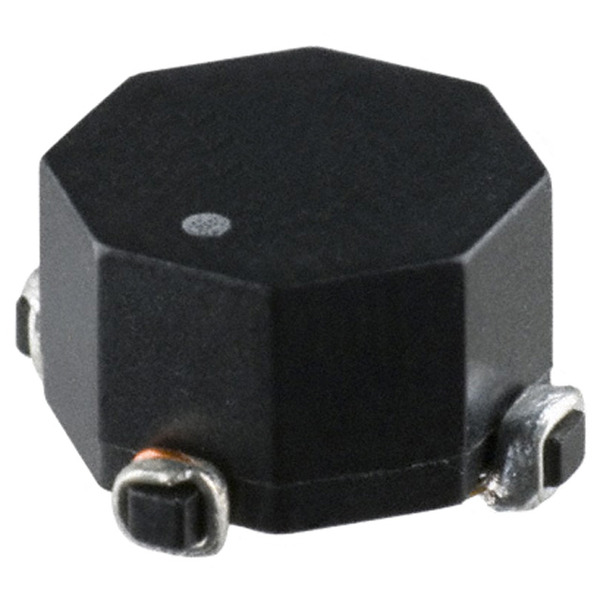

Images are for reference only.
See Product Specifications for product details.
Buy CMS2-7-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CMS2-7-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CMS2-7-R |
|---|---|
| Manufacturer | Eaton |
| Description | Common Mode Choke, 1.6A, 270H Inductance, 60m? DCR, 2H Leakage Inductance, 8.89x8.89x6mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.305 | $2.081 | $1.877 | $1.836 | ||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Series: | CMS |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Horizontal, 4 PC Pad |
| Other Names: | 513-1789-2 CMS2-7 CMS2-7-ND CMS2-7-R-ND CMS27R |
| Operating Temperature: | -40°C ~ 160°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 270µH @ 100kHz |
| Height (Max): | 0.236" (6.00mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 270µH @ 100kHz 2 Line Common Mode Choke Surface Mount 1.6A DCR 60 mOhm (Typ) |
| DC Resistance (DCR) (Max): | 60 mOhm (Typ) |
| Current Rating (Max): | 1.6A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply CMS2-7-R, use the request quote form to request CMS2-7-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CMS2-7-R.The price and lead time for CMS2-7-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CMS2-7-R.We look forward to working with you to establish long-term relations of cooperation
