CMPDM302PH TR
Central Semiconductor

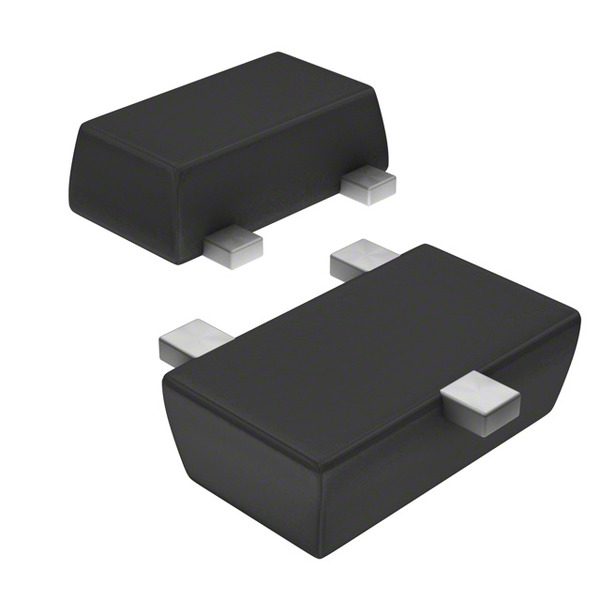

Images are for reference only.
See Product Specifications for product details.
Buy CMPDM302PH TR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CMPDM302PH TR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CMPDM302PH TR |
|---|---|
| Manufacturer | Central Semiconductor |
| Description | MOSFET P-CH 30V 2.4A SOT-23F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.04 | $0.91 | $0.702 | $0.52 | $0.416 | |
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 1.4V @ 250µA |
|---|---|
| Vgs (Max): | 12V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | SOT-23F |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 91 mOhm @ 1.2A, 4.5V |
| Power Dissipation (Max): | 350mW (Ta) |
| Packaging: | Cut Tape (CT) |
| Package / Case: | SOT-23-3 Flat Leads |
| Other Names: | CMPDM302PH CT CMPDM302PH CT-ND CMPDM302PHCT |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 800pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs: | 9.6nC @ 5V |
| FET Type: | P-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss): | 30V |
| Detailed Description: | P-Channel 30V 2.4A (Ta) 350mW (Ta) Surface Mount SOT-23F |
| Current - Continuous Drain (Id) @ 25°C: | 2.4A (Ta) |
| Email: | info@cjjhk.com |
Introduce
We can supply CMPDM302PH TR, use the request quote form to request CMPDM302PH TR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CMPDM302PH TR.The price and lead time for CMPDM302PH TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CMPDM302PH TR.We look forward to working with you to establish long-term relations of cooperation
