CM1409-06DE
onsemi

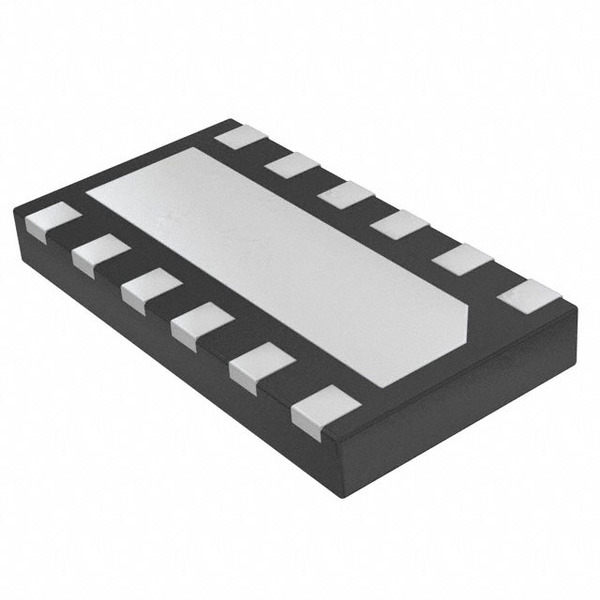

Images are for reference only.
See Product Specifications for product details.
Buy CM1409-06DE with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CM1409-06DE with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CM1409-06DE |
|---|---|
| Manufacturer | onsemi |
| Description | FILTER RC(PI) 100 OHM/15PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.111 | $0.10 | $0.09 | $0.088 | ||
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Values: | R = 100 Ohms, C = 15pF |
| Type: | Low Pass |
| Technology: | RC (Pi) |
| Size / Dimension: | 0.118" L x 0.053" W (3.00mm x 1.35mm) |
| Series: | - |
| Resistance - Channel (Ohms): | 100 |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 12-WFDFN Exposed Pad |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Channels: | 6 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.031" (0.79mm) |
| Filter Order: | 2nd |
| ESD Protection: | Yes |
| Detailed Description: | RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100 Ohms, C = 15pF 12-WFDFN Exposed Pad |
| Center / Cutoff Frequency: | 110MHz (Cutoff) |
| Attenuation Value: | 30dB @ 800MHz ~ 6GHz |
| Applications: | Data Lines for Mobile Devices |
| Email: | info@cjjhk.com |
Introduce
We can supply CM1409-06DE, use the request quote form to request CM1409-06DE pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CM1409-06DE.The price and lead time for CM1409-06DE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CM1409-06DE.We look forward to working with you to establish long-term relations of cooperation
