CM04RC09T
Taiyo Yuden

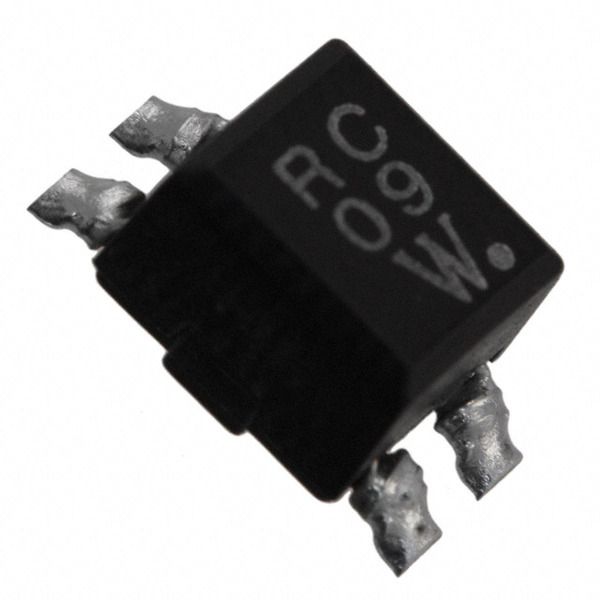

Images are for reference only.
See Product Specifications for product details.
Buy CM04RC09T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CM04RC09T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CM04RC09T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | SMD Common Mode Choke Coils for DC and Signal Lines, 3A, CM04RC, RoHS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.74 | $0.62 | $0.60 | $0.58 | $0.56 | |
Specifications
Data sheet
| Voltage Rating - DC: | 50V |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.205" L x 0.354" W (5.20mm x 9.00mm) |
| Series: | CM04 |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Horizontal, 4 Gull Wing |
| Other Names: | 587-2706-2 CM04RC09T-ND LR CM04RC 09 T |
| Operating Temperature: | -25°C ~ 105°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Impedance @ Frequency: | 270 Ohms @ 200MHz |
| Height (Max): | 0.173" (4.40mm) |
| Filter Type: | Power, Signal Line |
| Features: | - |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 270 Ohms @ 200MHz 3A DCR 30 mOhm |
| DC Resistance (DCR) (Max): | 30 mOhm |
| Current Rating (Max): | 3A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply CM04RC09T, use the request quote form to request CM04RC09T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CM04RC09T.The price and lead time for CM04RC09T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CM04RC09T.We look forward to working with you to establish long-term relations of cooperation
