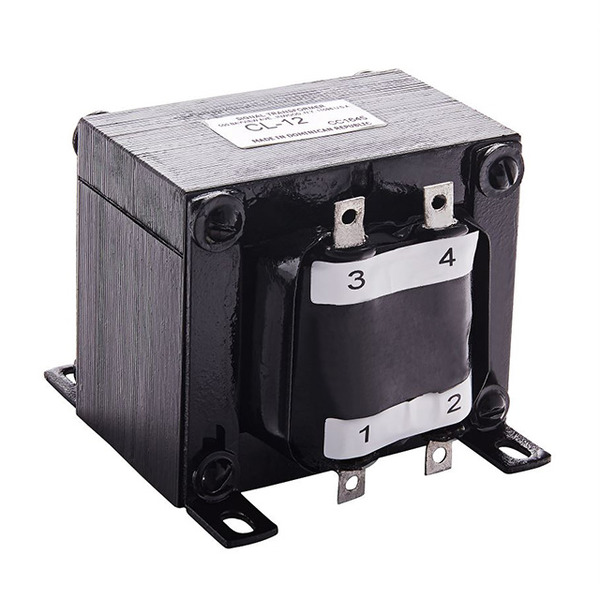

CL-12-24
Bel
Images are for reference only.
See Product Specifications for product details.
Buy CL-12-24 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CL-12-24 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CL-12-24 |
|---|---|
| Manufacturer | Bel |
| Description | INDUCT ARRAY 2COIL 1.2MH CHA MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $60.56 | $57.536 | ||||
Specifications
Data sheet
| Tolerance: | - |
|---|---|
| Size / Dimension: | 3.374" L x 3.563" W (85.70mm x 90.50mm) |
| Shielding: | Unshielded |
| Series: | CL |
| Ratings: | - |
| Packaging: | Bulk |
| Package / Case: | Nonstandard |
| Other Names: | 595-1883 CL-12-24-ND |
| Operating Temperature: | - |
| Number of Coils: | 2 |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance - Connected In Series: | 4.8mH |
| Inductance - Connected In Parallel: | 1.2mH |
| Height: | 2.811" (71.40mm) |
| Detailed Description: | Unshielded 2 Coil Inductor Array 4.8mH Inductance - Connected in Series 1.2mH Inductance - Connected in Parallel 13 mOhm DC Resistance (DCR) - Parallel 24A Nonstandard |
| DC Resistance (DCR) - Series: | 52 mOhm |
| DC Resistance (DCR) - Parallel: | 13 mOhm |
| Current Rating - Series: | 12A |
| Current Rating - Parallel: | 24A |
| Email: | info@cjjhk.com |
Introduce
We can supply CL-12-24, use the request quote form to request CL-12-24 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CL-12-24.The price and lead time for CL-12-24 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CL-12-24.We look forward to working with you to establish long-term relations of cooperation
