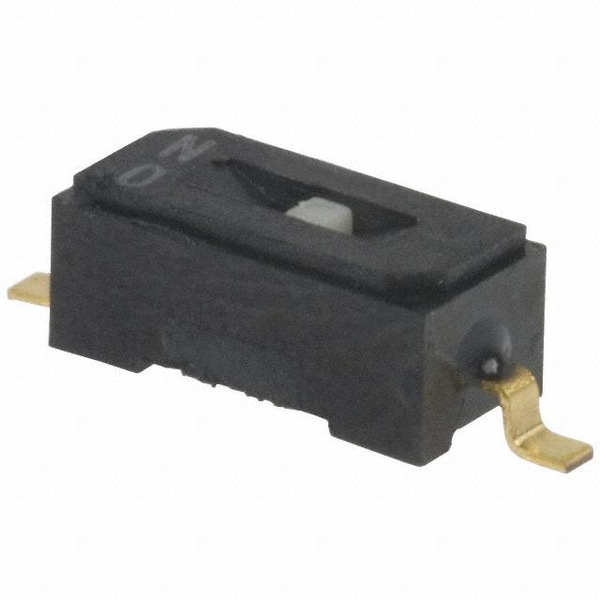

CHS-01TB
Copal Electronics
Images are for reference only.
See Product Specifications for product details.
Buy CHS-01TB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CHS-01TB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CHS-01TB |
|---|---|
| Manufacturer | Nidec Copal Electronics |
| Description | SWITCH SLIDE DIP SPST 100MA 6V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.484 | $0.437 | $0.394 | $0.385 | ||
Specifications
Data sheet
| Washable: | Yes |
|---|---|
| Voltage Rating: | 6VDC |
| Termination Style: | Gull Wing |
| Series: | CHS |
| Pitch: | 0.050" (1.27mm), Half |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 563-1004-2 CHS01TB |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Positions: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | - |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Length: | 0.098" (2.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Above Board: | 0.098" (2.50mm) |
| Features: | Tape Seal |
| Electrical Life: | 2,000 Cycles |
| Detailed Description: | Dip Switch SPST 1 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC |
| Current Rating: | 100mA |
| Contact Material: | Copper Alloy |
| Contact Finish: | Gold |
| Circuit: | SPST |
| Body Material: | Polyphenylene Sulfide (PPS) |
| Actuator Type: | Slide (Standard) |
| Actuator Level: | Flush, Recessed |
| Email: | info@cjjhk.com |
Introduce
We can supply CHS-01TB, use the request quote form to request CHS-01TB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CHS-01TB.The price and lead time for CHS-01TB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CHS-01TB.We look forward to working with you to establish long-term relations of cooperation
