CHG-2016-J01010-KCP
3M

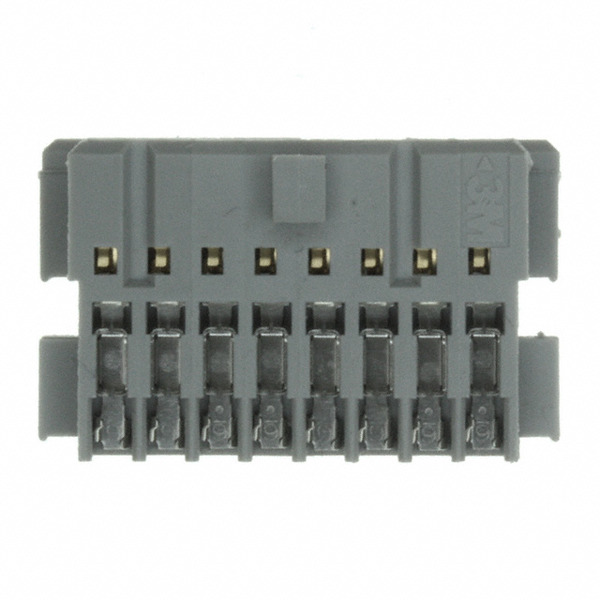

Images are for reference only.
See Product Specifications for product details.
Buy CHG-2016-J01010-KCP with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CHG-2016-J01010-KCP with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CHG-2016-J01010-KCP |
|---|---|
| Manufacturer | 3M |
| Description | CONN RECEPT IDC 16POS 28-26 AWG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $6.22 | $5.971 | $5.474 | $5.225 | $4.976 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $4.354 | $4.23 | $3.608 | $3.359 | ||
Specifications
Data sheet
| Wire Type: | Discrete or Ribbon Cable |
|---|---|
| Wire Gauge: | 26-28 AWG |
| Series: | CHG |
| Row Spacing: | 0.100" (2.54mm) |
| Pitch: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Other Names: | 00054007668305 05400766830 3M9094 5400766830 54007668305 7010396437 80610425383 CHG-2016-J01010-KCP-ND CHG2016J01010KCP |
| Number of Rows: | 2 |
| Number of Positions: | 16 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Closed End, Polarizing Key |
| Fastening Type: | - |
| Detailed Description: | 16 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG |
| Contact Type: | Female Socket |
| Contact Finish Thickness: | 30.0µin (0.76µm) |
| Contact Finish: | Gold |
| Connector Type: | Receptacle |
| Color: | Gray |
| Cable Termination: | IDC |
| Email: | info@cjjhk.com |
Introduce
We can supply CHG-2016-J01010-KCP, use the request quote form to request CHG-2016-J01010-KCP pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CHG-2016-J01010-KCP.The price and lead time for CHG-2016-J01010-KCP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CHG-2016-J01010-KCP.We look forward to working with you to establish long-term relations of cooperation
