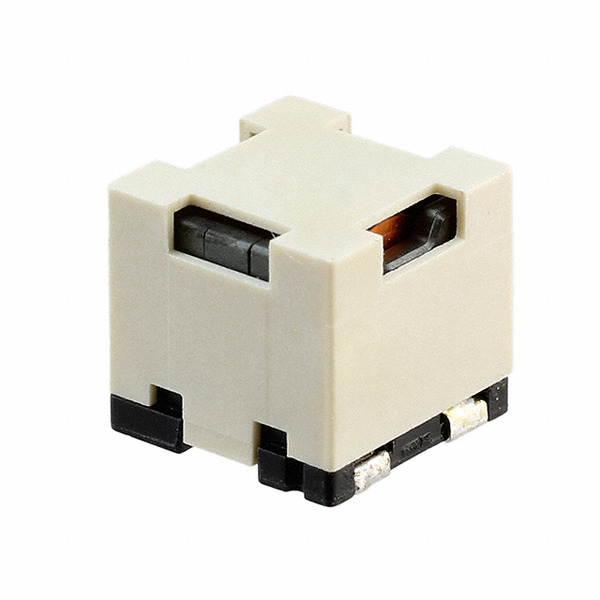

CDEPI106NP-220-S
Sumida Corporation
Images are for reference only.
See Product Specifications for product details.
Buy CDEPI106NP-220-S with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CDEPI106NP-220-S with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CDEPI106NP-220-S |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | INDUCT ARRAY 2 COIL 11UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $1.26 | |||||
Specifications
Data sheet
| Tolerance: | - |
|---|---|
| Size / Dimension: | 0.433" L x 0.433" W (11.00mm x 11.00mm) |
| Shielding: | Shielded |
| Series: | CDEPI106 |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 308-1615-2 CDEPI106NP220S |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Coils: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance - Connected In Series: | 44µH |
| Inductance - Connected In Parallel: | 11µH |
| Height: | 0.413" (10.50mm) |
| Detailed Description: | Shielded 2 Coil Inductor Array 44µH Inductance - Connected in Series 11µH Inductance - Connected in Parallel 11.5 mOhm DC Resistance (DCR) - Parallel 16A Nonstandard |
| DC Resistance (DCR) - Series: | 46 mOhm |
| DC Resistance (DCR) - Parallel: | 11.5 mOhm |
| Current Saturation - Series: | 2.2A |
| Current Saturation - Parallel: | 4.4A |
| Current Rating - Series: | 2A |
| Current Rating - Parallel: | 16A |
| Email: | info@cjjhk.com |
Introduce
We can supply CDEPI106NP-220-S, use the request quote form to request CDEPI106NP-220-S pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CDEPI106NP-220-S.The price and lead time for CDEPI106NP-220-S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CDEPI106NP-220-S.We look forward to working with you to establish long-term relations of cooperation
