CCT323047-100-16-00
TDK Corporation

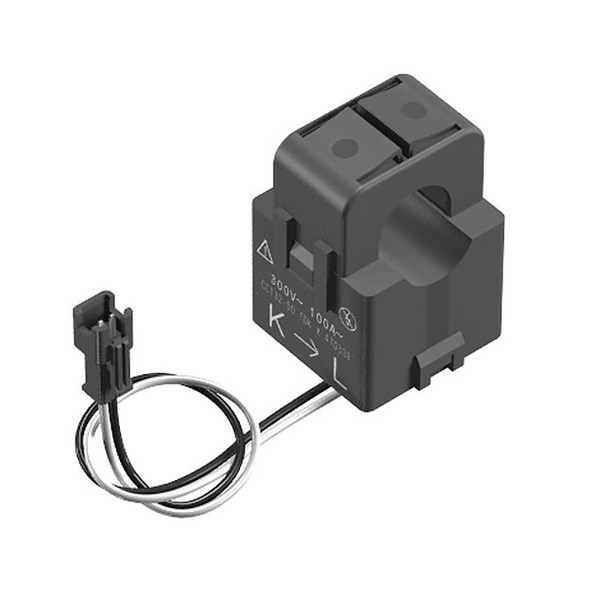

Images are for reference only.
See Product Specifications for product details.
Buy CCT323047-100-16-00 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CCT323047-100-16-00 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CCT323047-100-16-00 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CURR SENSE XFMR 100A CHAS MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $32.34 | $30.87 | $27.93 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $25.725 | $22.785 | $22.05 | |||
Specifications
Data sheet
| Weight: | 0.155 lb (70.31g) |
|---|---|
| Type: | Non-Invasive (Split Core) |
| Turns Ratio - Primary:Secondary: | - |
| Termination Style: | Wire Leads with Connector |
| Size / Dimension: | 1.378" L x 1.280" W (35.00mm x 32.50mm) |
| Series: | CCT |
| Ratings: | - |
| Packaging: | Bulk |
| Other Names: | 445-172912 |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 1.870" (47.50mm) |
| Frequency Range: | 50/60Hz |
| Energy Time (E.T.): | - |
| Detailed Description: | 100A Current Sense Transformer 50/60Hz 285 Ohm Chassis Mount |
| DC Resistance (DCR): | 285 Ohm |
| Current Ratio: | 3000:1 |
| Current Rating: | 100A |
| Email: | info@cjjhk.com |
Introduce
We can supply CCT323047-100-16-00, use the request quote form to request CCT323047-100-16-00 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CCT323047-100-16-00.The price and lead time for CCT323047-100-16-00 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CCT323047-100-16-00.We look forward to working with you to establish long-term relations of cooperation
