CB315FP-R
NKK Switches

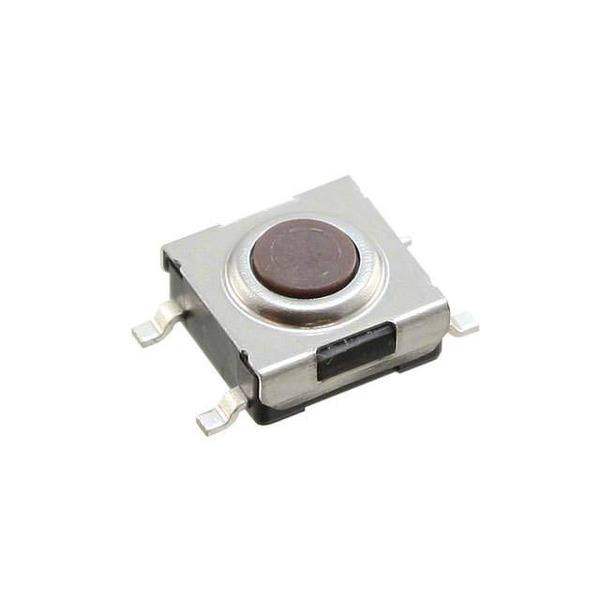

Images are for reference only.
See Product Specifications for product details.
Buy CB315FP-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy CB315FP-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | CB315FP-R |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.784 | $0.728 | ||||
Specifications
Data sheet
| Termination Style: | Gull Wing |
|---|---|
| Switch Travel: | 0.25mm |
| Switch Function: | Off-Mom |
| Series: | CB3 |
| Packaging: | Tape & Reel (TR) |
| Outline: | 6.20mm x 6.20mm |
| Other Names: | 360-2591-2 CB315FP-R-ND CB315FPR |
| Operating Temperature: | -25°C ~ 70°C |
| Operating Force: | 157gf |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 100,000 Cycles |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | Sealed - Fully |
| Detailed Description: | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Contact Rating @ Voltage: | 0.05A @ 24VDC |
| Circuit: | SPST-NO |
| Actuator Type: | Standard |
| Actuator Orientation: | Top Actuated |
| Actuator Material: | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length, Right Angle: | - |
| Actuator Height off PCB, Vertical: | 3.10mm |
| Email: | info@cjjhk.com |
Introduce
We can supply CB315FP-R, use the request quote form to request CB315FP-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CB315FP-R.The price and lead time for CB315FP-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CB315FP-R.We look forward to working with you to establish long-term relations of cooperation
