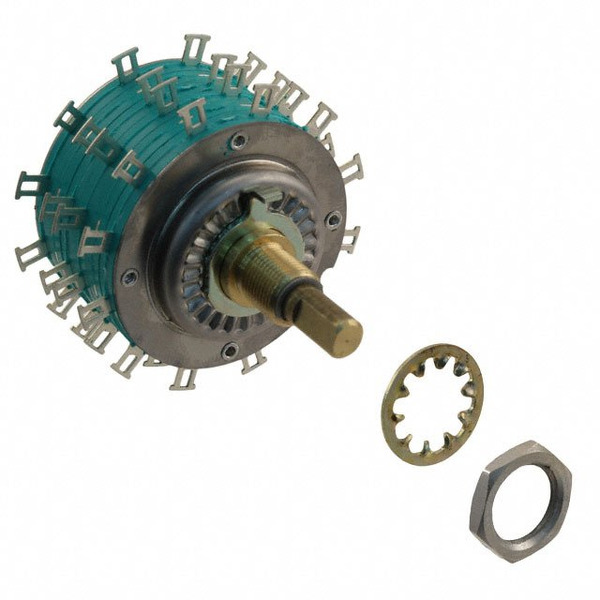

C7D0224N-C
Electroswitch
Images are for reference only.
See Product Specifications for product details.
Buy C7D0224N-C with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy C7D0224N-C with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | C7D0224N-C |
|---|---|
| Manufacturer | Electroswitch |
| Description | SWITCH ROTARY 24POS 500MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $63.70 | $59.954 | $58.08 | $54.333 | $51.335 | |
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Solder Lug |
| Series: | C7 |
| Panel Cutout Dimensions: | Circular - 9.78mm Dia |
| Other Names: | 451-1038 C7D0224NC |
| Operating Force: | - |
| Number of Positions: | 24 |
| Number of Poles per Deck: | 1 |
| Number of Decks: | 2 |
| Mounting Type: | Panel Mount |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Index Stops: | Continuous |
| Features: | - |
| Detailed Description: | Rotary Switch 24 Position SP24T 500mA (AC), 1A (DC) 125VAC Panel Mount |
| Depth Behind Panel: | 32.49mm |
| Current Rating: | 500mA (AC), 1A (DC) |
| Contact Timing: | Non-Shorting (BBM) |
| Contact Material: | Brass |
| Contact Finish: | Silver |
| Circuit per Deck: | SP24T |
| Angle of Throw: | 15° |
| Actuator Type: | Flatted (6.35mm Dia) |
| Actuator Length: | 14.29mm |
| Email: | info@cjjhk.com |
Introduce
We can supply C7D0224N-C, use the request quote form to request C7D0224N-C pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number C7D0224N-C.The price and lead time for C7D0224N-C depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# C7D0224N-C.We look forward to working with you to establish long-term relations of cooperation
