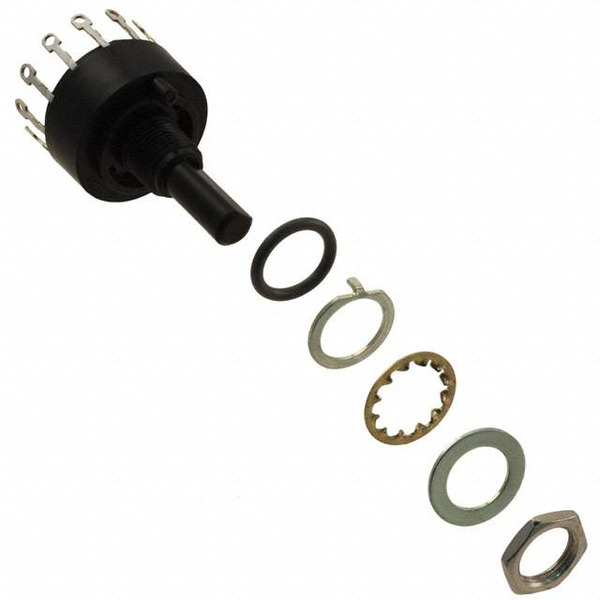

C5P0304N-A
Electroswitch
Images are for reference only.
See Product Specifications for product details.
Buy C5P0304N-A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy C5P0304N-A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | C5P0304N-A |
|---|---|
| Manufacturer | Electroswitch |
| Description | SWITCH ROTARY 2-4POS 1A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $11.20 | $10.181 | $9.926 | $9.163 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $8.654 | $7.89 | $7.381 | $6.77 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Solder Lug |
| Series: | C5 |
| Panel Cutout Dimensions: | Circular - 9.78mm Dia |
| Other Names: | 451-1029 C5P0304NA |
| Operating Force: | - |
| Number of Positions: | 2 ~ 4 |
| Number of Poles per Deck: | 3 |
| Number of Decks: | 1 |
| Mounting Type: | Panel Mount |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Index Stops: | Adjustable |
| Features: | Sealed |
| Detailed Description: | Rotary Switch 2 ~ 4 Position 3P4T 1A (AC/DC) 125VAC Panel Mount |
| Depth Behind Panel: | 20.07mm |
| Current Rating: | 1A (AC/DC) |
| Contact Timing: | Non-Shorting (BBM) |
| Contact Material: | Brass |
| Contact Finish: | Silver |
| Circuit per Deck: | 3P4T |
| Angle of Throw: | 30° |
| Actuator Type: | Flatted (6.35mm Dia) |
| Actuator Length: | 14.29mm |
| Email: | info@cjjhk.com |
Introduce
We can supply C5P0304N-A, use the request quote form to request C5P0304N-A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number C5P0304N-A.The price and lead time for C5P0304N-A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# C5P0304N-A.We look forward to working with you to establish long-term relations of cooperation
