BNX028-01L
Murata Electronics

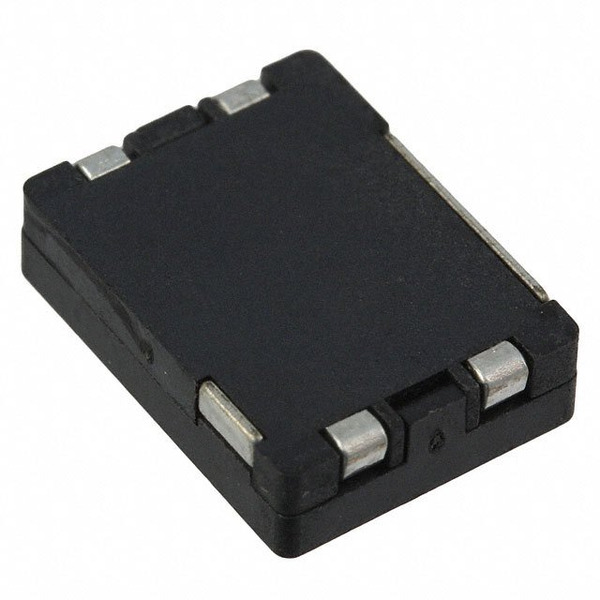

Images are for reference only.
See Product Specifications for product details.
Buy BNX028-01L with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy BNX028-01L with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | BNX028-01L |
|---|---|
| Manufacturer | Murata |
| Description | BN Series 47 uF 16 V 20 A 0.43 mOhm SMT Block EMIFIL? EMI Filter |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $3.983 | $3.595 | $3.243 | $3.172 | ||
Specifications
Data sheet
| Voltage - Rated: | 16V |
|---|---|
| Values: | C = 47µF |
| Type: | Low Pass |
| Technology: | LC |
| Size / Dimension: | 0.476" L x 0.358" W (12.10mm x 9.10mm) |
| Series: | EMIFIL®, BNX |
| Resistance - Channel (Ohms): | 0.00043 |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 4-SMD, J-Lead |
| Other Names: | 490-12524-1 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Channels: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.146" (3.70mm) |
| Filter Order: | 5th |
| ESD Protection: | No |
| Detailed Description: | LC EMI Filter 5th Order Low Pass 2 Channel C = 47µF 20A 4-SMD, J-Lead |
| Current: | 20A |
| Center / Cutoff Frequency: | - |
| Attenuation Value: | 35dB @ 30kHz ~ 1GHz |
| Applications: | Data Lines for Mobile Devices |
| Email: | info@cjjhk.com |
Introduce
We can supply BNX028-01L, use the request quote form to request BNX028-01L pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BNX028-01L.The price and lead time for BNX028-01L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BNX028-01L.We look forward to working with you to establish long-term relations of cooperation
