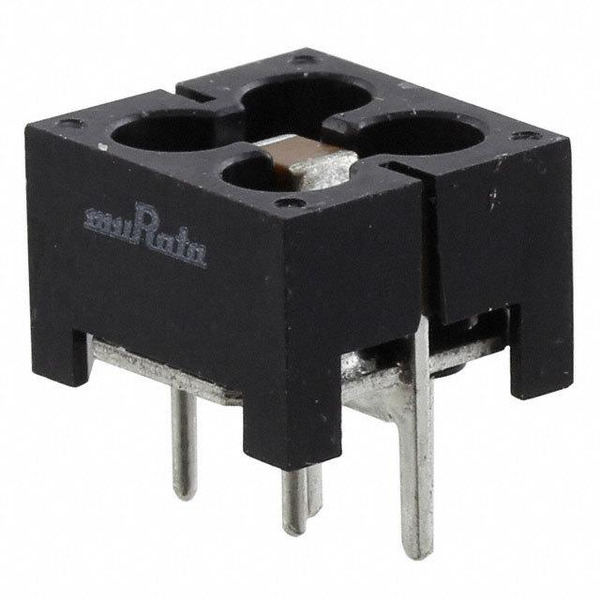

BNX012H01
Murata Electronics
Images are for reference only.
See Product Specifications for product details.
Buy BNX012H01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy BNX012H01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | BNX012H01 |
|---|---|
| Manufacturer | Murata |
| Description | EMI Filter LC-Circuit 15A 50VDC PC Pins Thru-Hole Automotive Box |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $3.922 | $3.54 | $3.193 | $3.124 | ||
Specifications
Data sheet
| Voltage - Rated: | 50V |
|---|---|
| Values: | - |
| Type: | Low Pass |
| Technology: | LC |
| Size / Dimension: | 0.472" L x 0.433" W (12.00mm x 11.00mm) |
| Series: | EMIFIL®, BNX |
| Resistance - Channel (Ohms): | - |
| Packaging: | Bulk |
| Package / Case: | Block, 4 Lead |
| Other Names: | 490-7830 BNX012H01-ND |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Channels: | 2 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.335" (8.50mm) |
| Filter Order: | 5th |
| ESD Protection: | No |
| Detailed Description: | LC EMI Filter 5th Order Low Pass 2 Channel 15A Block, 4 Lead |
| Current: | 15A |
| Center / Cutoff Frequency: | - |
| Attenuation Value: | 40dB @ 1MHz ~ 1GHz |
| Applications: | Automotive |
| Email: | info@cjjhk.com |
Introduce
We can supply BNX012H01, use the request quote form to request BNX012H01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BNX012H01.The price and lead time for BNX012H01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BNX012H01.We look forward to working with you to establish long-term relations of cooperation
