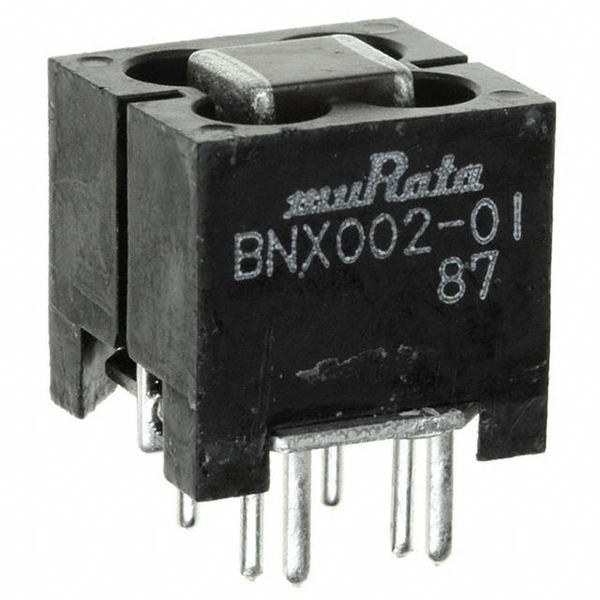

BNX002-01
Murata Electronics
Images are for reference only.
See Product Specifications for product details.
Buy BNX002-01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy BNX002-01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | BNX002-01 |
|---|---|
| Manufacturer | Murata |
| Description | BNX Series 12 x 13 mm 50 Ohm 10 A 50 V Through Hole EMI Suppression Filter |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $3.797 | $3.427 | $3.091 | $3.024 | ||
Specifications
Data sheet
| Voltage - Rated: | 50V |
|---|---|
| Values: | - |
| Type: | Low Pass |
| Technology: | LC |
| Size / Dimension: | 0.472" L x 0.433" W (12.00mm x 11.00mm) |
| Series: | EMIFIL®, BNX |
| Resistance - Channel (Ohms): | - |
| Packaging: | Bulk |
| Package / Case: | Block, 4 Lead |
| Other Names: | 490-5053 BNX00201 |
| Operating Temperature: | -30°C ~ 85°C |
| Number of Channels: | 2 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.512" (13.00mm) |
| Filter Order: | 5th |
| ESD Protection: | No |
| Detailed Description: | LC EMI Filter 5th Order Low Pass 2 Channel 10A Block, 4 Lead |
| Current: | 10A |
| Center / Cutoff Frequency: | - |
| Attenuation Value: | 40dB @ 1MHz ~ 1GHz |
| Applications: | Data Lines for Mobile Devices |
| Email: | info@cjjhk.com |
Introduce
We can supply BNX002-01, use the request quote form to request BNX002-01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BNX002-01.The price and lead time for BNX002-01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BNX002-01.We look forward to working with you to establish long-term relations of cooperation
