BAT30LFILM
STMicroelectronics

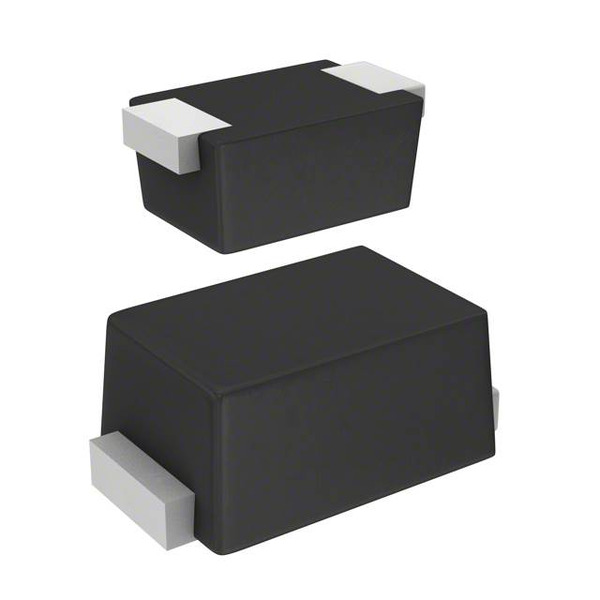

Images are for reference only.
See Product Specifications for product details.
Buy BAT30LFILM with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy BAT30LFILM with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | BAT30LFILM |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | DIODE SCHOTTKY 30V 300MA SOD923 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.096 | |||||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 530mV @ 300mA |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 30V |
| Supplier Device Package: | SOD-923 |
| Speed: | Fast Recovery = 200mA (Io) |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | SOD-923 |
| Other Names: | 497-10980-2 BAT30LFILM-ND |
| Operating Temperature - Junction: | 150°C (Max) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 30V 300mA (DC) Surface Mount SOD-923 |
| Current - Reverse Leakage @ Vr: | 5µA @ 30V |
| Current - Average Rectified (Io): | 300mA (DC) |
| Capacitance @ Vr, F: | 22pF @ 0V, 1MHz |
| Base Part Number: | BAT30L |
| Email: | info@cjjhk.com |
Introduce
We can supply BAT30LFILM, use the request quote form to request BAT30LFILM pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT30LFILM.The price and lead time for BAT30LFILM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT30LFILM.We look forward to working with you to establish long-term relations of cooperation
