BAS70KFILM
STMicroelectronics

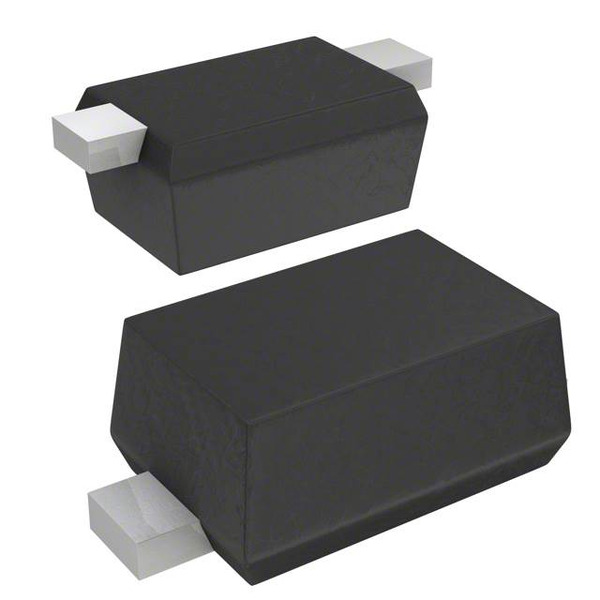

Images are for reference only.
See Product Specifications for product details.
Buy BAS70KFILM with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy BAS70KFILM with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | BAS70KFILM |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BAS70 Series 70 mA 1000 mV Schottky Diode SMT SOD-523 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.086 | $0.078 | $0.07 | $0.068 | ||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 1V @ 15mA |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 70V |
| Supplier Device Package: | SOD-523 |
| Speed: | Small Signal =< 200mA (Io), Any Speed |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | SC-79, SOD-523 |
| Other Names: | 497-5695-2 BAS70KFILM/J |
| Operating Temperature - Junction: | 150°C (Max) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 70V 70mA (DC) Surface Mount SOD-523 |
| Current - Reverse Leakage @ Vr: | 10µA @ 70V |
| Current - Average Rectified (Io): | 70mA (DC) |
| Capacitance @ Vr, F: | 2pF @ 0V, 1MHz |
| Base Part Number: | BAS70K |
| Email: | info@cjjhk.com |
Introduce
We can supply BAS70KFILM, use the request quote form to request BAS70KFILM pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAS70KFILM.The price and lead time for BAS70KFILM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAS70KFILM.We look forward to working with you to establish long-term relations of cooperation
