B82720S2301N040
EPCOS

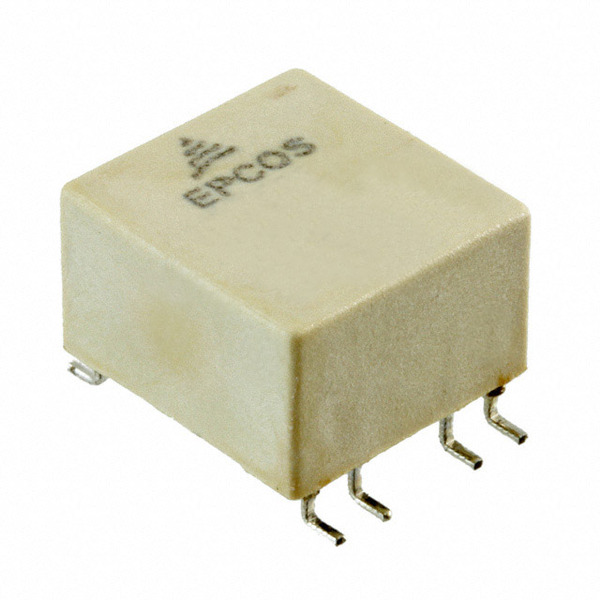

Images are for reference only.
See Product Specifications for product details.
Buy B82720S2301N040 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy B82720S2301N040 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | B82720S2301N040 |
|---|---|
| Manufacturer | EPCOS |
| Description | CMC 12MH 300MA 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | ||
|---|---|---|---|---|---|
| $1.357 | $1.282 | $1.206 | |||
| 1250 pcs | 2500 pcs | 6250 pcs | |||
| $1.169 | $1.131 | $1.093 | |||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | 250V |
| Size / Dimension: | 0.571" L x 0.524" W (14.50mm x 13.30mm) |
| Series: | B82720 |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Horizontal, 8 Gull Wing |
| Other Names: | 495-5724 495-5724-2 495-5724-ND B82720S2301N 40 B82720S2301N40 B82720S2301N40-ND B82720S2301N40Z99 |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 12mH @ 10kHz |
| Height (Max): | 0.421" (10.70mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 12mH @ 10kHz 2 Line Common Mode Choke Surface Mount 300mA DCR 1.1 Ohm (Typ) |
| DC Resistance (DCR) (Max): | 1.1 Ohm (Typ) |
| Current Rating (Max): | 300mA |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply B82720S2301N040, use the request quote form to request B82720S2301N040 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number B82720S2301N040.The price and lead time for B82720S2301N040 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# B82720S2301N040.We look forward to working with you to establish long-term relations of cooperation
