B65686A0315A027
EPCOS

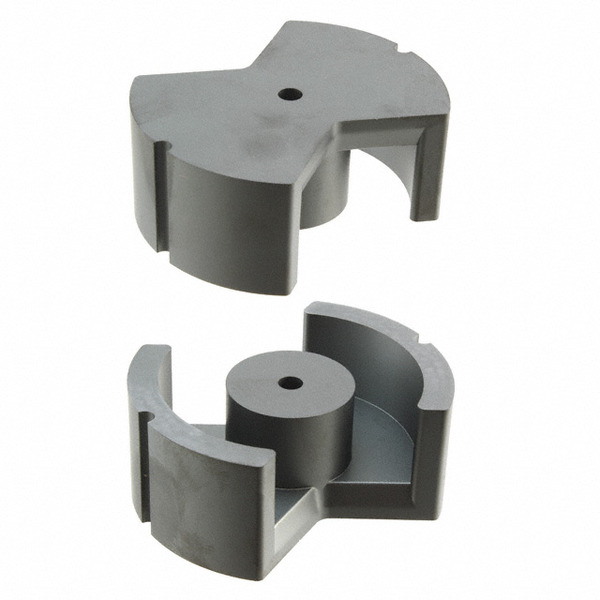

Images are for reference only.
See Product Specifications for product details.
Buy B65686A0315A027 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy B65686A0315A027 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | B65686A0315A027 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE PM 315NH N27 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $55.26 | $49.12 | $40.524 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $39.296 | $34.384 | $31.928 | |||
Specifications
Data sheet
| Width: | - |
|---|---|
| Tolerance: | ±3% |
| Supplier Device Package: | PM 74 x 59 |
| Series: | B65686 |
| Other Names: | 495-5176 B65686A 315A 27 B65686A315A27 B65686A315A27-ND |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Minimum Core Cross Section (Amin) mm²: | 630 |
| Material: | N27 |
| Manufacturer Standard Lead Time: | 24 Weeks |
| Length: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Initial Permeability (µi): | 2000 |
| Inductance Factor (Al): | 315nH |
| Height: | 29.50mm |
| Gap: | Gapped |
| Finish: | Uncoated |
| Effective Permeability (µe): | 41 |
| Effective Magnetic Volume (Ve) mm³: | 101000 |
| Effective Length (le) mm: | 128 |
| Effective Area (Ae) mm²: | 790 |
| Diameter: | 74.00mm |
| Core Type: | PM |
| Core Factor (ΣI/A) mm1: | 0.162 |
| Email: | info@cjjhk.com |
Introduce
We can supply B65686A0315A027, use the request quote form to request B65686A0315A027 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number B65686A0315A027.The price and lead time for B65686A0315A027 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# B65686A0315A027.We look forward to working with you to establish long-term relations of cooperation
