AZ-0750
Talema

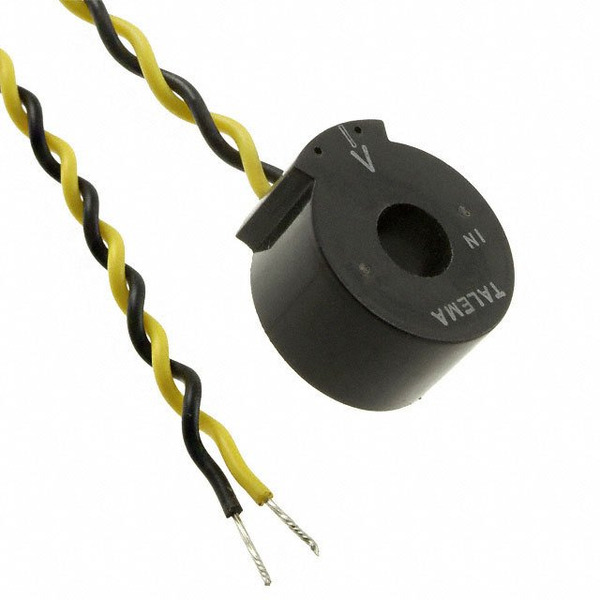

Images are for reference only.
See Product Specifications for product details.
Buy AZ-0750 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AZ-0750 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AZ-0750 |
|---|---|
| Manufacturer | Talema |
| Description | CURR SENSE XFMR 750:1 40A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 560 pcs | ||||
|---|---|---|---|---|---|
| $4.698 | |||||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Type: | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary: | 750:1 |
| Termination Style: | Wire Leads |
| Size / Dimension: | 0.748" Dia (19.00mm) |
| Series: | AZ |
| Ratings: | - |
| Packaging: | Tray |
| Other Names: | 1295-1137 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 0.453" (11.50mm) |
| Frequency Range: | 50Hz ~ 60Hz |
| Energy Time (E.T.): | - |
| Detailed Description: | 40A 750:1 Current Sense Transformer 50Hz ~ 60Hz 35 Ohm Primary Surface Mount |
| DC Resistance (DCR): | 35 Ohm Primary |
| Current Ratio: | - |
| Current Rating: | 40A |
| Email: | info@cjjhk.com |
Introduce
We can supply AZ-0750, use the request quote form to request AZ-0750 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AZ-0750.The price and lead time for AZ-0750 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AZ-0750.We look forward to working with you to establish long-term relations of cooperation
