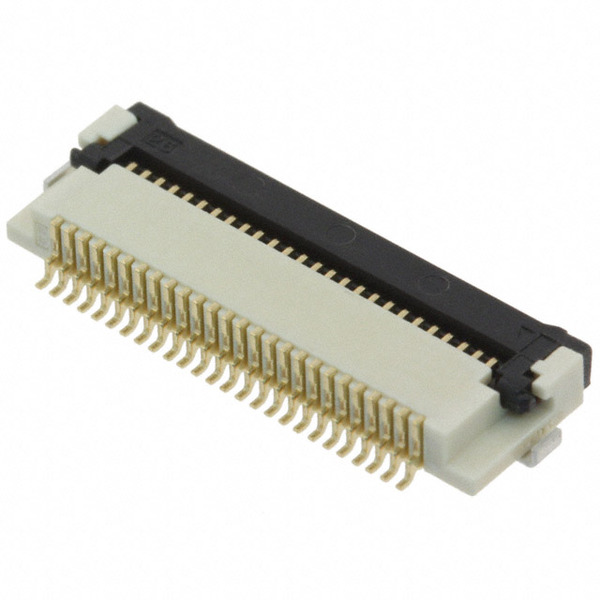

AYF522615
Panasonic
Images are for reference only.
See Product Specifications for product details.
Buy AYF522615 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AYF522615 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AYF522615 |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN FFC BOTTOM 26POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Solder |
| Series: | Y5F |
| Pitch: | 0.020" (0.50mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 255-3064-2 |
| Operating Temperature: | -55°C ~ 85°C |
| Number of Positions: | 26 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 30 |
| Material Flammability Rating: | - |
| Locking Feature: | Rotary Lock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Liquid Crystal Polymer (LCP) |
| Housing Color: | - |
| Height Above Board: | 0.079" (2.00mm) |
| Flat Flex Type: | FFC, FPC |
| Features: | Solder Retention |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 26 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating: | 0.5A per Contact |
| Contact Material: | Copper Alloy |
| Contact Finish Thickness: | Flash |
| Contact Finish: | Gold |
| Connector/Contact Type: | Contacts, Bottom |
| Cable End Type: | Tapered |
| Actuator Material: | Polyamide (PA), Nylon |
| Actuator Color: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply AYF522615, use the request quote form to request AYF522615 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AYF522615.The price and lead time for AYF522615 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AYF522615.We look forward to working with you to establish long-term relations of cooperation
