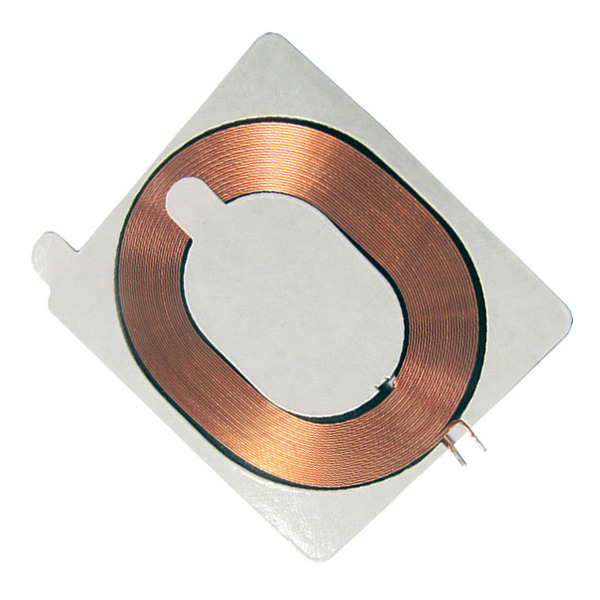

AWCCA-42R38H08-C03-B
Abracon Corporation
Images are for reference only.
See Product Specifications for product details.
Buy AWCCA-42R38H08-C03-B with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-42R38H08-C03-B with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AWCCA-42R38H08-C03-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RX 1 COIL 1 LAYER 12UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $5.97 | $5.425 | $3.689 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $3.364 | $3.147 | $3.038 | |||
Specifications
Data sheet
| Type: | 1 Coil, 1 Layer |
|---|---|
| Tolerance: | ±5% |
| Size / Dimension: | 1.65" L x 1.50" W x 0.03" H (42.0mm x 38.0mm x 0.9mm) |
| Series: | AWCCA |
| Q @ Freq: | 28 @ 100kHz |
| Other Names: | 535-13304 |
| Operating Temperature: | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 12µH |
| Function: | Receiver |
| Frequency - Self Resonant: | - |
| Detailed Description: | 1 Coil, 1 Layer 12µH Wireless Charging Coil Receiver 350 mOhm |
| DC Resistance (DCR): | 350 mOhm |
| Current Rating: | - |
| Current - Saturation: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply AWCCA-42R38H08-C03-B, use the request quote form to request AWCCA-42R38H08-C03-B pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AWCCA-42R38H08-C03-B.The price and lead time for AWCCA-42R38H08-C03-B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AWCCA-42R38H08-C03-B.We look forward to working with you to establish long-term relations of cooperation
