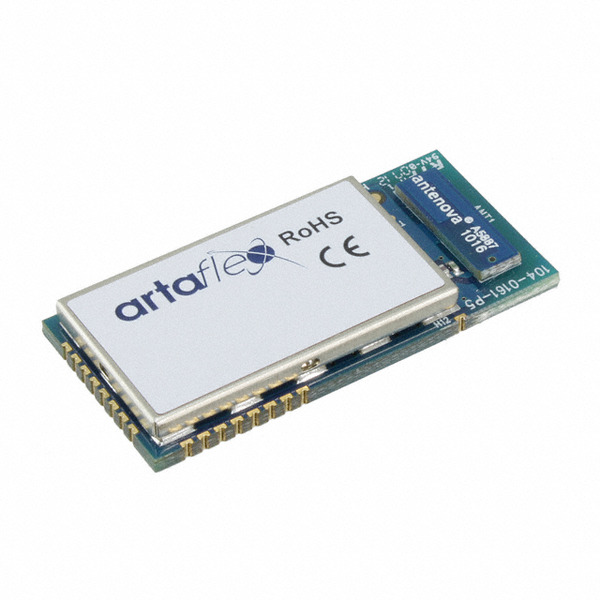

AW24TH-C-SM
Artaflex Inc.
Images are for reference only.
See Product Specifications for product details.
Buy AW24TH-C-SM with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AW24TH-C-SM with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AW24TH-C-SM |
|---|---|
| Manufacturer | Artaflex Inc. |
| Description | RF TXRX MODULE 802.15.4 CHIP ANT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $40.42 | $37.688 | $34.958 | $32.773 | ||
Specifications
Data sheet
| Voltage - Supply: | 2.7 V ~ 3.6 V |
|---|---|
| Utilized IC / Part: | - |
| Series: | - |
| Serial Interfaces: | SPI, UART |
| Sensitivity: | -105dBm |
| RF Family/Standard: | 802.15.4 |
| Protocol: | Zigbee® |
| Power - Output: | 24.2dBm |
| Packaging: | Tray |
| Package / Case: | Module |
| Other Names: | 748-1010 AW24THCSM |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Modulation: | - |
| Memory Size: | 256kB Flash, 8kB RAM |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Frequency: | 2.4GHz |
| Data Rate: | 250kbps |
| Current - Transmitting: | 29mA |
| Current - Receiving: | 24mA |
| Antenna Type: | Integrated, Chip |
| Email: | info@cjjhk.com |
Introduce
We can supply AW24TH-C-SM, use the request quote form to request AW24TH-C-SM pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AW24TH-C-SM.The price and lead time for AW24TH-C-SM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AW24TH-C-SM.We look forward to working with you to establish long-term relations of cooperation
