AV4544
Panasonic

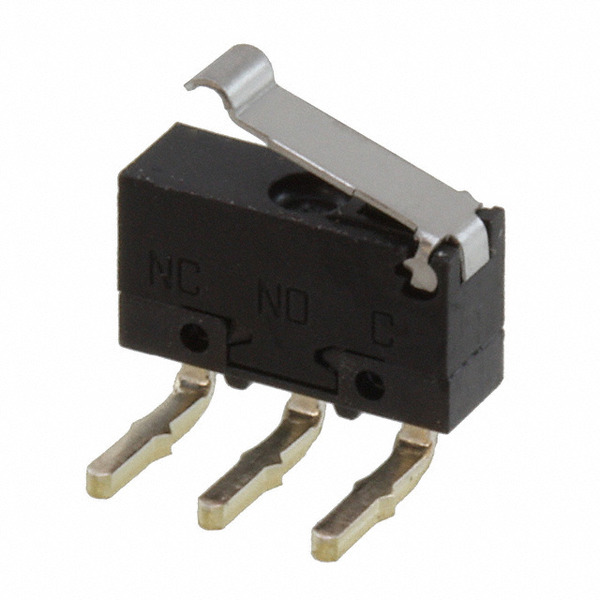

Images are for reference only.
See Product Specifications for product details.
Buy AV4544 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AV4544 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AV4544 |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 500MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.26 | $2.088 | $1.958 | $1.914 | $1.523 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.436 | $1.349 | $1.262 | $1.175 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Termination Style: | PC Pin |
| Switch Function: | On-Mom |
| Series: | AV4 |
| Release Force: | - |
| Pretravel: | 0.087" (2.2mm) |
| Packaging: | Bulk |
| Overtravel: | 0.011" (0.3mm) |
| Other Names: | 255-3742 AV4544-ND |
| Operating Temperature: | -25°C ~ 80°C |
| Operating Position: | 0.240" (6.1mm) |
| Operating Force: | 29gf |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 300,000 Cycles |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | - |
| Electrical Life: | 20,000 Cycles |
| Differential Travel: | 0.027" (0.7mm) |
| Current Rating: | 500mA (DC) |
| Circuit: | SPDT |
| Actuator Type: | Lever, Simulated Roller |
| Email: | info@cjjhk.com |
Introduce
We can supply AV4544, use the request quote form to request AV4544 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AV4544.The price and lead time for AV4544 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AV4544.We look forward to working with you to establish long-term relations of cooperation
