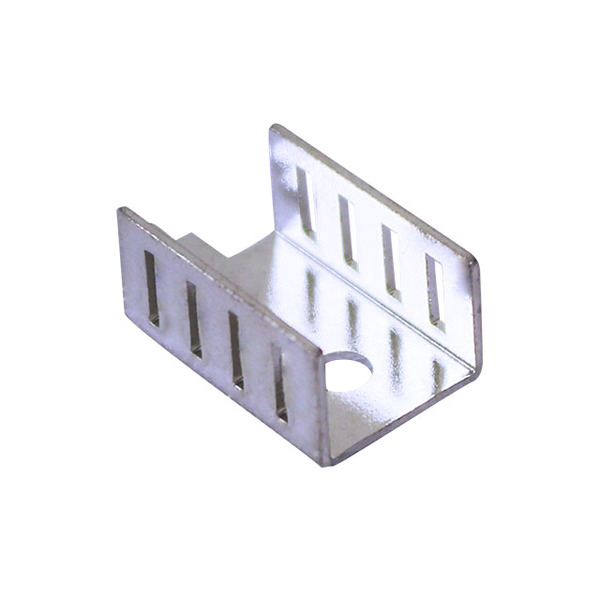

ATS-PCBT1096
Advanced Thermal Solutions, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy ATS-PCBT1096 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-PCBT1096 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ATS-PCBT1096 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK TO-220 STEEL W/TAB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.47 | $0.449 | $0.426 | $0.415 | $0.41 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.381 | $0.359 | $0.325 | $0.314 | ||
Specifications
Data sheet
| Width: | 0.520" (13.21mm) |
|---|---|
| Type: | Board Level, Vertical |
| Thermal Resistance @ Natural: | 35.70°C/W |
| Thermal Resistance @ Forced Air Flow: | 14.00°C/W @ 200 LFM |
| Shape: | Rectangular, Fins |
| Series: | - |
| Power Dissipation @ Temperature Rise: | - |
| Package Cooled: | TO-220 |
| Other Names: | ATS2138 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Finish: | Tin |
| Material: | Steel |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length: | 0.750" (19.05mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 0.375" (9.52mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink TO-220 Steel Board Level, Vertical |
| Attachment Method: | Bolt On and Board Mounts |
| Email: | info@cjjhk.com |
Introduce
We can supply ATS-PCBT1096, use the request quote form to request ATS-PCBT1096 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ATS-PCBT1096.The price and lead time for ATS-PCBT1096 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ATS-PCBT1096.We look forward to working with you to establish long-term relations of cooperation
