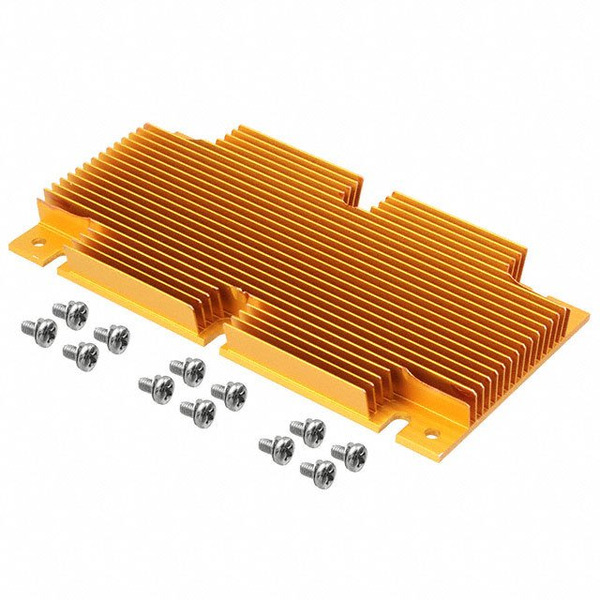

ATS-1109-C1-R0
Advanced Thermal Solutions, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy ATS-1109-C1-R0 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-1109-C1-R0 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ATS-1109-C1-R0 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | FULL BRICK HEATSINK 117X61X11.4M |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $14.49 | $13.681 | $12.876 | $12.072 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $11.267 | $10.462 | $10.261 | |||
Specifications
Data sheet
| Width: | 2.401" (61.00mm) |
|---|---|
| Type: | Top Mount |
| Thermal Resistance @ Natural: | - |
| Thermal Resistance @ Forced Air Flow: | 5.20°C/W @ 200 LFM |
| Shape: | Rectangular, Angled Fins |
| Series: | maxiFLOW |
| Power Dissipation @ Temperature Rise: | - |
| Package Cooled: | Full Brick DC/DC Converter |
| Other Names: | ATS1508 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Finish: | Gold Anodized |
| Material: | Aluminum |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length: | 4.598" (116.80mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 0.449" (11.40mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink Full Brick DC/DC Converter Aluminum Top Mount |
| Attachment Method: | Bolt On |
| Email: | info@cjjhk.com |
Introduce
We can supply ATS-1109-C1-R0, use the request quote form to request ATS-1109-C1-R0 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ATS-1109-C1-R0.The price and lead time for ATS-1109-C1-R0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ATS-1109-C1-R0.We look forward to working with you to establish long-term relations of cooperation
