ATS-09A-112-C2-R1
Advanced Thermal Solutions, Inc.

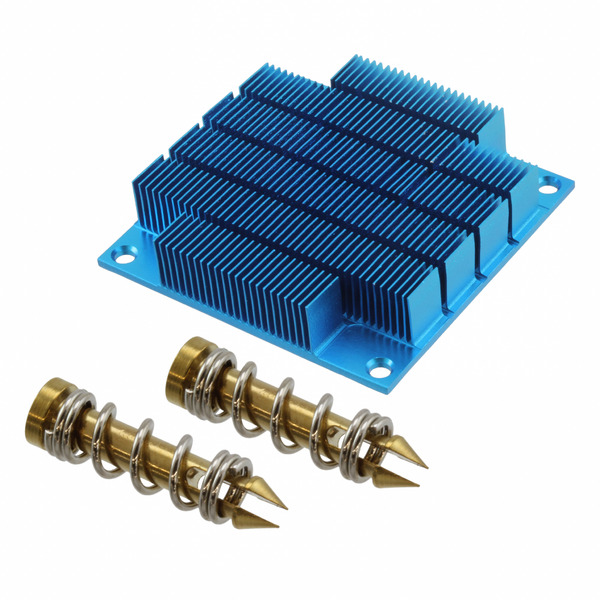

Images are for reference only.
See Product Specifications for product details.
Buy ATS-09A-112-C2-R1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-09A-112-C2-R1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ATS-09A-112-C2-R1 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK 60X40X12.7MM XCUT T766 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.00 | $9.731 | $9.19 | $8.65 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $8.109 | $7.568 | $7.028 | $6.893 | ||
Specifications
Data sheet
| Width: | 1.575" (40.00mm) |
|---|---|
| Type: | Top Mount |
| Thermal Resistance @ Natural: | - |
| Thermal Resistance @ Forced Air Flow: | 26.30°C/W @ 100 LFM |
| Shape: | Rectangular, Fins |
| Series: | pushPIN™ |
| Power Dissipation @ Temperature Rise: | - |
| Package Cooled: | Assorted (BGA, LGA, CPU, ASIC...) |
| Other Names: | ATS-09A-112-C2-R1-ND ATS15336 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Finish: | Blue Anodized |
| Material: | Aluminum |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length: | 2.362" (60.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 0.500" (12.70mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount |
| Attachment Method: | Push Pin |
| Email: | info@cjjhk.com |
Introduce
We can supply ATS-09A-112-C2-R1, use the request quote form to request ATS-09A-112-C2-R1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ATS-09A-112-C2-R1.The price and lead time for ATS-09A-112-C2-R1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ATS-09A-112-C2-R1.We look forward to working with you to establish long-term relations of cooperation
