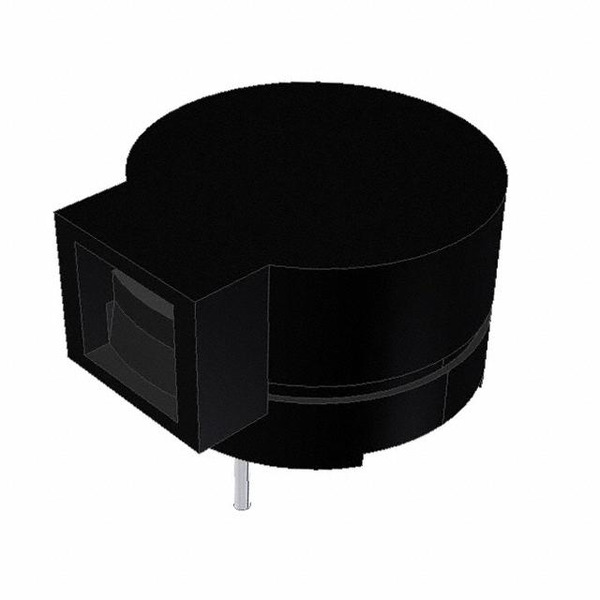

AT-1420-ST-R
PUI Audio, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy AT-1420-ST-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AT-1420-ST-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AT-1420-ST-R |
|---|---|
| Manufacturer | PUI Audio, Inc. |
| Description | AUDIO MAGNETIC XDCR 1-3V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.41 | $1.117 | $1.018 | $0.952 | $0.886 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.809 | $0.754 | $0.704 | $0.688 | ||
Specifications
Data sheet
| Voltage Range: | 1 ~ 3V |
|---|---|
| Voltage - Rated: | 1.5V |
| Termination: | PC Pins |
| Technology: | Magnetic |
| Sound Pressure Level (SPL): | 80dB @ 1.5V, 10cm |
| Size / Dimension: | 0.543" L x 0.472" W (13.80mm x 12.00mm) |
| Series: | AT |
| Ratings: | - |
| Port Location: | Side |
| Packaging: | Tray |
| Other Names: | 668-1376 688-1376 688-1376-ND AT-1420-ST-R-ND AT1420STR |
| Operating Temperature: | -20°C ~ 70°C |
| Operating Mode: | Single Tone |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | Peak-Peak Signal |
| Height - Seated (Max): | 0.315" (8.00mm) |
| Frequency: | 2.048kHz |
| Duration: | - |
| Driver Circuitry: | Transducer, Externally Driven |
| Detailed Description: | Buzzers Transducer, Externally Driven Magnetic 1.5V 70mA 2.048kHz 80dB @ 1.5V, 10cm Through Hole PC Pins |
| Current - Supply: | 70mA |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply AT-1420-ST-R, use the request quote form to request AT-1420-ST-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AT-1420-ST-R.The price and lead time for AT-1420-ST-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AT-1420-ST-R.We look forward to working with you to establish long-term relations of cooperation
