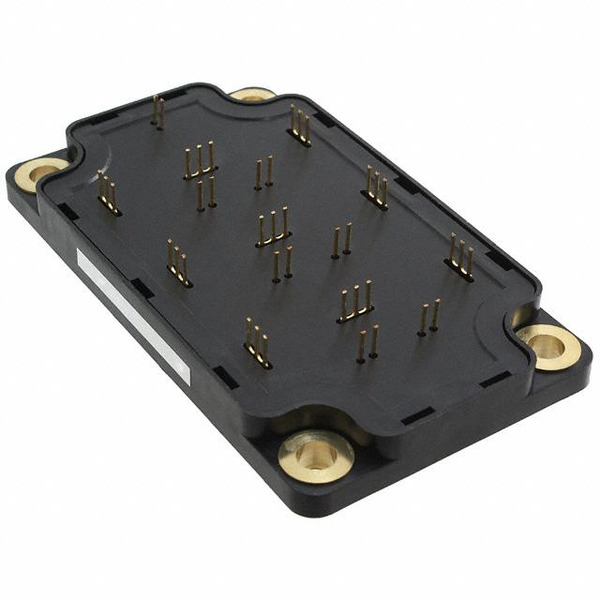

APTMC120TAM33CTPAG
Microsemi
Images are for reference only.
See Product Specifications for product details.
Buy APTMC120TAM33CTPAG with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy APTMC120TAM33CTPAG with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | APTMC120TAM33CTPAG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET 6N-CH 1200V 78A SP6-P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $860.62 | |||||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 2.2V @ 3mA (Typ) |
|---|---|
| Supplier Device Package: | SP6-P |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 33 mOhm @ 60A, 20V |
| Power - Max: | 370W |
| Packaging: | Bulk |
| Package / Case: | SP6 |
| Other Names: | APTMC120TAM33CTPACC6543 |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 32 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 2850pF @ 1000V |
| Gate Charge (Qg) (Max) @ Vgs: | 148nC @ 20V |
| FET Type: | 6 N-Channel (3-Phase Bridge) |
| FET Feature: | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss): | 1200V (1.2kV) |
| Detailed Description: | Mosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 78A (Tc) 370W Chassis Mount SP6-P |
| Current - Continuous Drain (Id) @ 25°C: | 78A (Tc) |
| Email: | info@cjjhk.com |
Introduce
We can supply APTMC120TAM33CTPAG, use the request quote form to request APTMC120TAM33CTPAG pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTMC120TAM33CTPAG.The price and lead time for APTMC120TAM33CTPAG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTMC120TAM33CTPAG.We look forward to working with you to establish long-term relations of cooperation
