APTGT50TL601G
Microsemi

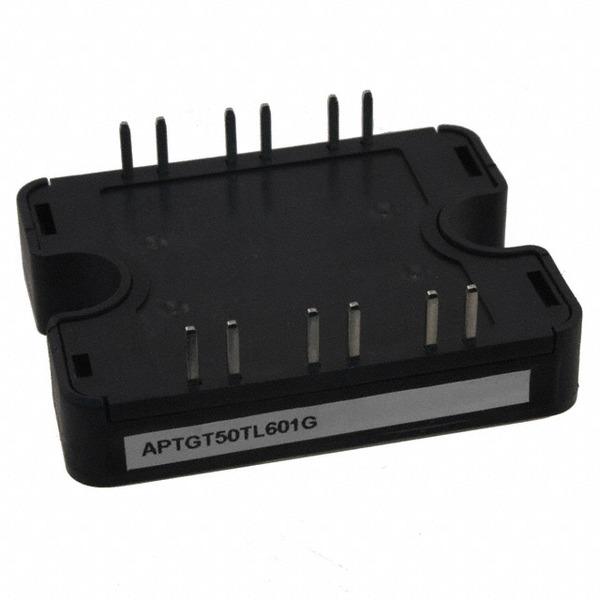

Images are for reference only.
See Product Specifications for product details.
Buy APTGT50TL601G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT50TL601G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | APTGT50TL601G |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MODULE IGBT 600V 50A SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $55.39 | $52.129 | $48.871 | $46.59 | ||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 600V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 1.9V @ 15V, 50A |
| Supplier Device Package: | SP1 |
| Series: | - |
| Power - Max: | 176W |
| Package / Case: | SP1 |
| Other Names: | APTGT50TL601GMI APTGT50TL601GMI-ND |
| Operating Temperature: | -40°C ~ 175°C (TJ) |
| NTC Thermistor: | No |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 32 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce: | 3.15nF @ 25V |
| Input: | Standard |
| IGBT Type: | Trench Field Stop |
| Detailed Description: | IGBT Module Trench Field Stop Three Level Inverter 600V 80A 176W Chassis Mount SP1 |
| Current - Collector Cutoff (Max): | 250µA |
| Current - Collector (Ic) (Max): | 80A |
| Configuration: | Three Level Inverter |
| Email: | info@cjjhk.com |
Introduce
We can supply APTGT50TL601G, use the request quote form to request APTGT50TL601G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGT50TL601G.The price and lead time for APTGT50TL601G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGT50TL601G.We look forward to working with you to establish long-term relations of cooperation
