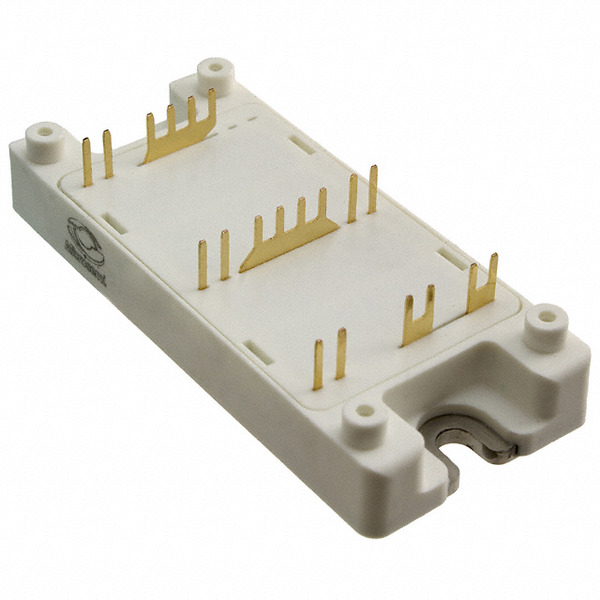

APTGT300A60TG
Microsemi
Images are for reference only.
See Product Specifications for product details.
Buy APTGT300A60TG with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT300A60TG with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | APTGT300A60TG |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MOD IGBT TRENCH PH LEG SP4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $114.83 | |||||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 600V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 1.9V @ 15V, 300A |
| Supplier Device Package: | SP4 |
| Series: | - |
| Power - Max: | 935W |
| Package / Case: | SP4 |
| Operating Temperature: | -40°C ~ 175°C (TJ) |
| NTC Thermistor: | Yes |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 32 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce: | 18.4nF @ 25V |
| Input: | Standard |
| IGBT Type: | Trench Field Stop |
| Detailed Description: | IGBT Module Trench Field Stop Half Bridge 600V 430A 935W Chassis Mount SP4 |
| Current - Collector Cutoff (Max): | 350µA |
| Current - Collector (Ic) (Max): | 430A |
| Configuration: | Half Bridge |
| Email: | info@cjjhk.com |
Introduce
We can supply APTGT300A60TG, use the request quote form to request APTGT300A60TG pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGT300A60TG.The price and lead time for APTGT300A60TG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGT300A60TG.We look forward to working with you to establish long-term relations of cooperation
