APTGT150SK120G
Microsemi

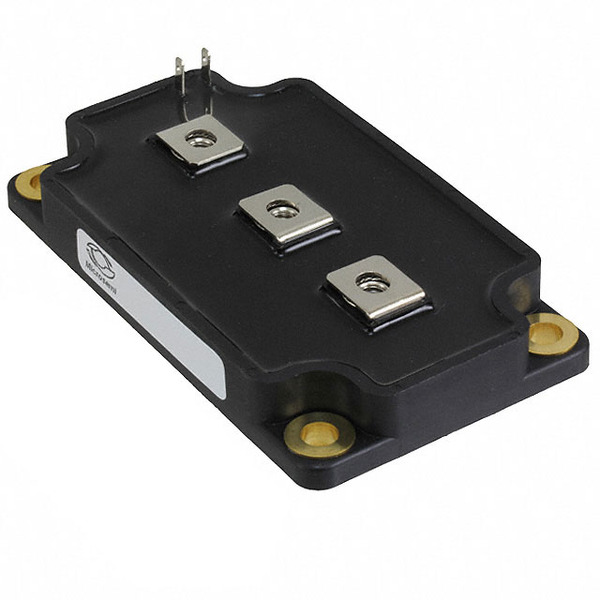

Images are for reference only.
See Product Specifications for product details.
Buy APTGT150SK120G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy APTGT150SK120G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | APTGT150SK120G |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 1200V 220A 690W SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $86.90 | |||||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 1200V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 2.1V @ 15V, 150A |
| Supplier Device Package: | SP6 |
| Series: | - |
| Power - Max: | 690W |
| Package / Case: | SP6 |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| NTC Thermistor: | No |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 32 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce: | 10.7nF @ 25V |
| Input: | Standard |
| IGBT Type: | Trench Field Stop |
| Detailed Description: | IGBT Module Trench Field Stop Single 1200V 220A 690W Chassis Mount SP6 |
| Current - Collector Cutoff (Max): | 350µA |
| Current - Collector (Ic) (Max): | 220A |
| Configuration: | Single |
| Email: | info@cjjhk.com |
Introduce
We can supply APTGT150SK120G, use the request quote form to request APTGT150SK120G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGT150SK120G.The price and lead time for APTGT150SK120G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGT150SK120G.We look forward to working with you to establish long-term relations of cooperation
