APTGLQ100A65T1G
Microsemi

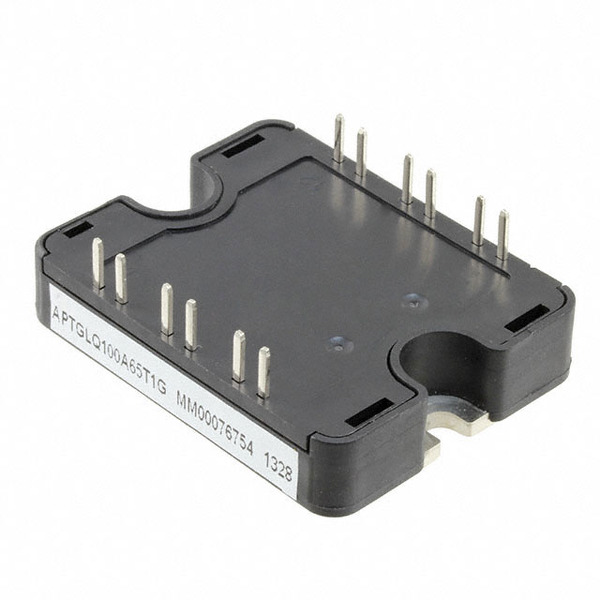

Images are for reference only.
See Product Specifications for product details.
Buy APTGLQ100A65T1G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy APTGLQ100A65T1G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | APTGLQ100A65T1G |
|---|---|
| Manufacturer | Microsemi |
| Description | PWR MOD IGBT4 650V 200A SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $41.065 | |||||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 650V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 2.3V @ 15V, 100A |
| Supplier Device Package: | SP1 |
| Series: | - |
| Power - Max: | 350W |
| Package / Case: | SP1 |
| Operating Temperature: | -40°C ~ 175°C (TJ) |
| NTC Thermistor: | Yes |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 32 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce: | 6nF @ 25V |
| Input: | Standard |
| IGBT Type: | Trench Field Stop |
| Detailed Description: | IGBT Module Trench Field Stop Half Bridge 650V 200A 350W Through Hole SP1 |
| Current - Collector Cutoff (Max): | 100µA |
| Current - Collector (Ic) (Max): | 200A |
| Configuration: | Half Bridge |
| Email: | info@cjjhk.com |
Introduce
We can supply APTGLQ100A65T1G, use the request quote form to request APTGLQ100A65T1G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGLQ100A65T1G.The price and lead time for APTGLQ100A65T1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGLQ100A65T1G.We look forward to working with you to establish long-term relations of cooperation
