APT22F100J
Microsemi

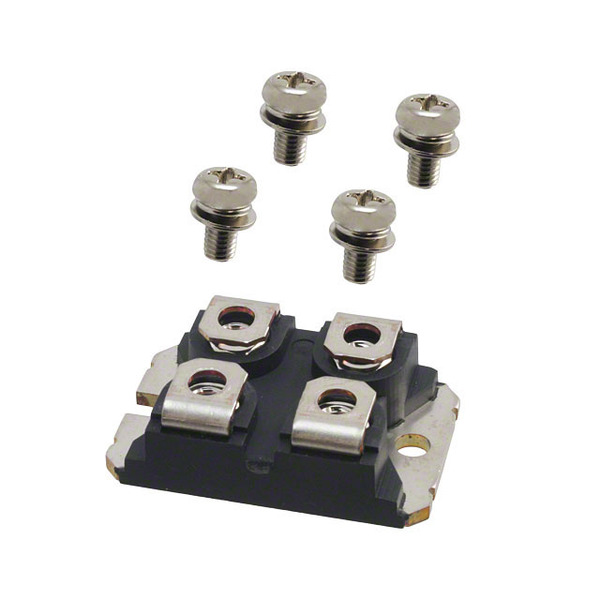

Images are for reference only.
See Product Specifications for product details.
Buy APT22F100J with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy APT22F100J with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | APT22F100J |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 1000V 23A SOT-227 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $33.193 | |||||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | - |
|---|---|
| Vgs (Max): | ±30V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | ISOTOP® |
| Series: | POWER MOS 8™ |
| Rds On (Max) @ Id, Vgs: | 380 mOhm @ 18A, 10V |
| Power Dissipation (Max): | 545W (Tc) |
| Packaging: | Tube |
| Package / Case: | SOT-227-4, miniBLOC |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 21 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 9835pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs: | 305nC @ 10V |
| FET Type: | N-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Drain to Source Voltage (Vdss): | 1000V |
| Detailed Description: | N-Channel 1000V 23A (Tc) 545W (Tc) Chassis Mount ISOTOP® |
| Current - Continuous Drain (Id) @ 25°C: | 23A (Tc) |
| Email: | info@cjjhk.com |
Introduce
We can supply APT22F100J, use the request quote form to request APT22F100J pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT22F100J.The price and lead time for APT22F100J depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT22F100J.We look forward to working with you to establish long-term relations of cooperation
